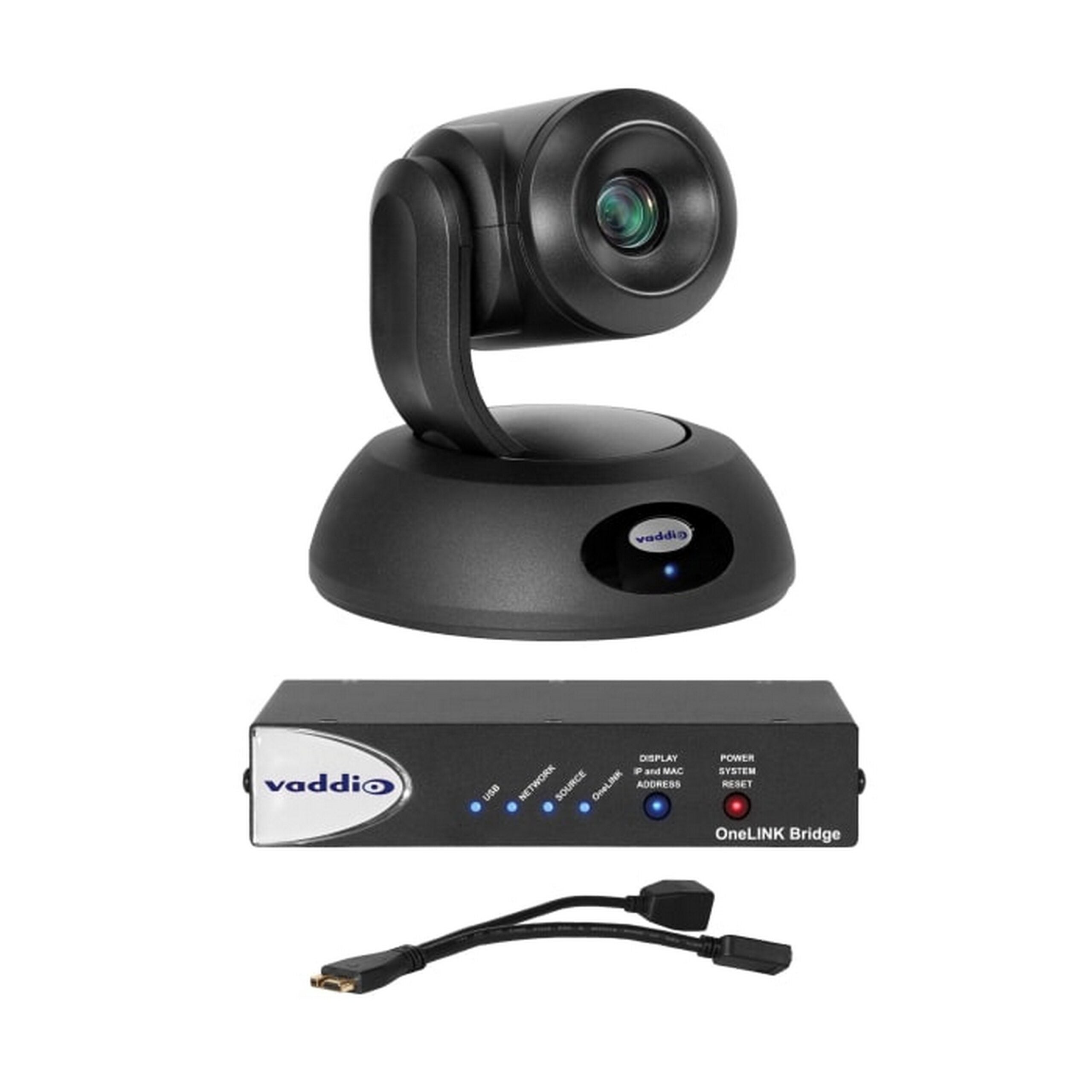

Vaddio RoboSHOT 12E HDBT OneLINK Bridge PTZ Camera System for Cisco SX Codecs, Black

Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom.
Along with the bridging capabilities, the system’s OneLINK Bridge Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.

This Package Includes:
RoboSHOT 12E HDBT camera (black or white)
Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Commander
OneLINK Bridge Interface
48V power supply with AC cord set(s)
4 qty 3-position phoenix-style connectors
10.25″ (26 cm) Cisco CAB-PHD4XS2-SPLIT cable
3′ (0.9m) cat-5 cable, black
3′ (0.3m) directional cat-5 cable for Cisco SX20
3′ (0.9m) HDMI cable
6′ (1.8m) USB 3.0 cable, type A to B
EZCamera RS-232 Control Adapter
EZCamera RS-232 Control Adapter 998-1002-232 for Cisco codec serial 9-pin ports
Application Note: Using RoboSHOT Series Cameras with Cisco Codecs
Quick-Start Guides

Key Features

• 12x Optical Zoom
• 1/2.5-type Exmor R CMOS sensor
• 70.2 horizontal field of view
• Simultaneous HDbaseT, HDMI and IP H.264 streaming
• Remote IP Management
• Simple, clutter-free camera extension with HDBaseT technology
• Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
• Bridges audio and video for easy soft-client conferencing
• Simultaneous HDMI, USB 3.0, IP Streaming, and SDI outputs
• Configurable audio matrix with AEC
• Up to 1080p/60 resolution available over uncompressed USB

Technical Specifications

Color
Black
Certifications
CE Approved, FCC Approved, TAA Compliant
Product Width
7.05″ (17.91 cm)
Product Height
6.94″ (17.63 cm)
Product Depth
6.75″ (17.15 cm)
Product Weight
4.85 lbs (2.2 kg)
Signal Type
HDMI, RS-232, IP-Streaming, 3G-SDI, Audio, USB 3.0
Power Type
OneLINK
Output Ports
3G-SDI, HDMI, USB 3 Type B, IP-Streaming, Audio
Zoom
12x
Max Resolution
1080p/60
Field of View
70.2 Wide End to 4.1 Tele End
Estimated Room Size
Small Conference Room, Large Conference Room, Large Venue
Minimum Illumination
1.0 Lux (F1.6), 100+ Lux Recommended
Browser-based User Interface for Remote Control
Built-in
Control Method
Joystick, Web UI, Telnet, RS-232 and IR Remote
OneLINK Compatibility
Native
OneLINK Bridge adds
328 ft (100 M) Power, Video, Control Extension, HDMI, 3G-SDI, USB 3.0, Audio Mixer
PTZ Motors
Silent BLDC Direct Drive Motors
Tri-Sync Motion
Yes
Pan and Tilt Range
Pan: +/-160, Tilt: +90 to -30
Pan and Tilt Speed
0.35/sec to 120/sec
Pixels
8.51 Megapixel (8.57 Total MP)
Top Resolution
1080p/60
Invertible
Yes
Focus System
Auto, Manual
Gain
Auto, Manual
Operating Temperature
32 to 104F (0 to 40C)
Preset Positions
16 + Custom Home Position
White Balance
Auto, Manual, One-Push
Warranty
2 years
Power Supply
48 VDC, 1.36 A
Quick-Connect Compatibility
No
Distance
328 ft (100 m)
