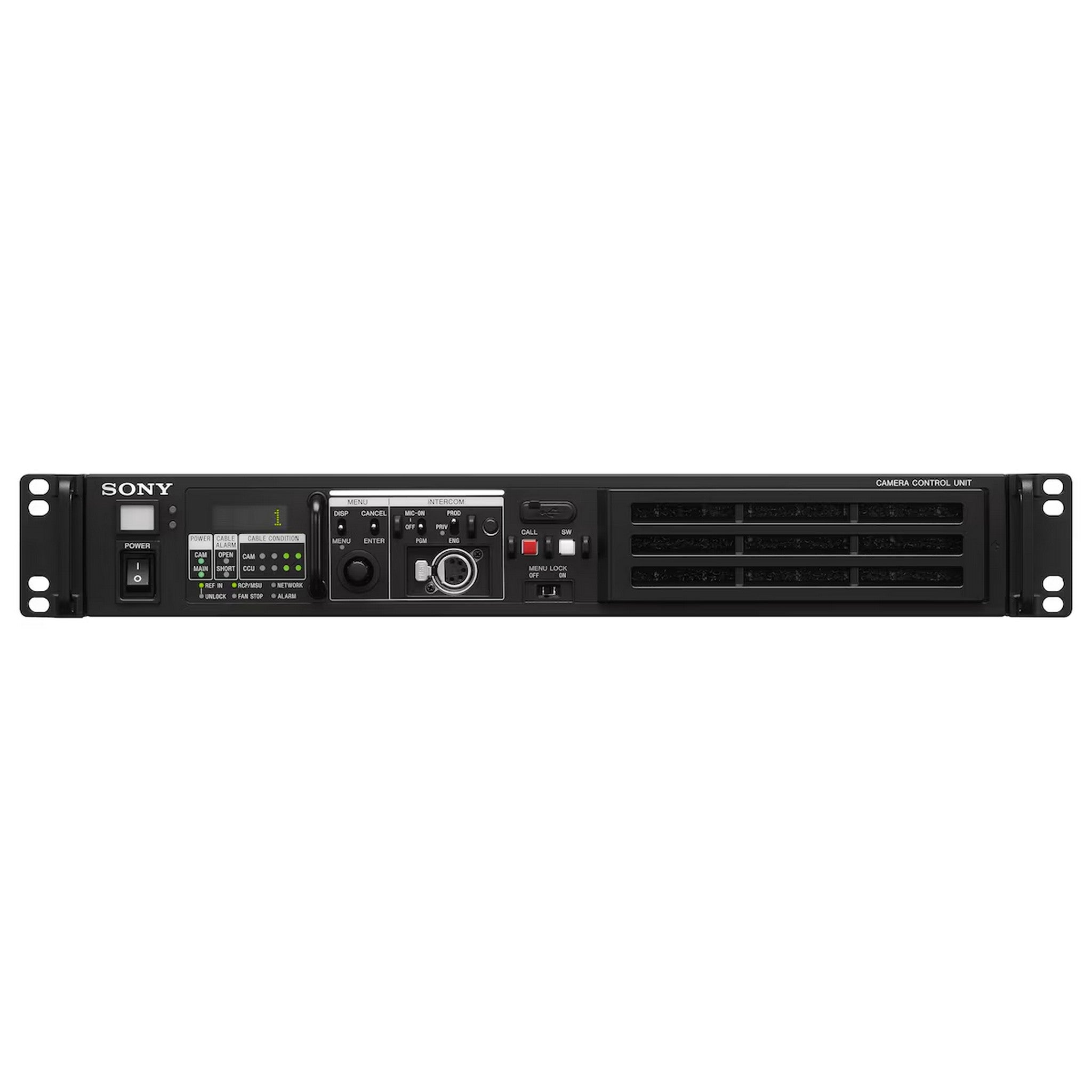

Sony HDCU-3100 Camera Control Unit

The Sony HDCU-3100 Camera Control Unit stands out as a sophisticated and reliable solution for modern broadcast and production environments. Engineered to deliver outstanding performance, the HDCU-3100 offers seamless integration with Sony’s high-definition camera systems, ensuring high-quality video production with ease. Its advanced features make it an ideal choice for live event broadcasting, studio production, and other demanding applications where precision and reliability are paramount.

Featuring a compact and robust design, the HDCU-3100 is built to handle the rigorous demands of professional environments. It provides comprehensive control over camera settings, including focus, zoom, and iris adjustments, allowing for fine-tuned control and consistency in image capture. The unit’s intuitive interface and flexible connectivity options ensure that it can be effortlessly integrated into existing production setups, offering both functionality and convenience.

The HDCU-3100 supports various camera configurations and operates seamlessly with Sony’s extensive range of broadcast cameras. Its advanced signal processing capabilities guarantee pristine image quality, making it an essential tool for achieving exceptional broadcast results. Whether you are upgrading your current system or setting up a new one, the HDCU-3100 provides the reliability and performance needed to meet the highest standards of broadcast production.

Key Features

• Advanced camera control capabilities for precise adjustments.
• Seamless integration with Sony high-definition camera systems.
• Robust and compact design for durability in professional environments.
• Flexible connectivity options for easy integration into existing setups.
• High-quality signal processing for superior image clarity.

Technical Specifications

Dimensions
16″ x 8″ x 19″
Weight
Approx. 16 lb. 1.5 oz. (7.3 kg)
Power Requirements
100 V to 240 V AC, 50/60 Hz
Current Consumption
4.5 A (max.)
Operating Temperature
41°F to 104°F (5°C to 40°C)
Storage Temperature
–4°F to +140°F (–20°C to +60°C)

Input/Output Connectors
CAMERA FIBER
Optical fiber connector (x1)
INTERCOM/TALLY/IO PORT
D-sub 50-pin connector (x1)
INTERCOM (PROD/ENG)
4 W: 0 dBu, RTS: 0 dBu, CC: –14 dBu
PGM
2 systems, 0dBu/–20dBu
TALLY (R, G, Y)
FLAG
RCP/CNU
8-pin multi-connector (x1)
TRUNK
12-pin (x1)
LAN-COM
8-pin (x1)
NETWORK TRUNK
8-pin (x1)
SDI I/O 1 to 4
3G/HD/SD SDI I/O, BNC (x4)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbps
3G-SDI/HD-SDI/SD-SDI, character signal selectable
REFERENCE IN/OUT
BNC (x2), loop-through output
HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω
SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) or NTSC 10F-BB
Input Connectors
AC IN
100 V to 240 V AC (x1)
SDI RET 1 to 4
BNC (x4)
3G-SDI: SMPTE ST424/425, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 1.485 Gbps/1.4835 Gbps
SD-SDI: SMPTE ST259, 270 Mbps
PROMPTER 1
PROMPTER 2/VBS-RET
BNC (x2), loop-through output during 1CH mode, terminate internally at 75 Ω during 2CH mode, analog signal, 1.0 Vp-p, 75 Ω
Output Connectors
AUDIO OUT CH1, CH2
XLR 3-pin, male (x2), 0dBu/–20 dBu/+4 dBu
CHARACTER/ABS/EBU
BNC (x1), VBS, 1 Vp-p, 75 Ω
HD SYNC
BTA-S001, tri-level sync, 0.6 Vp-p, 75 Ω
SD SYNC
composite sync, 0.3 Vp-p, 75 Ω
VBS/HD SYNC/SD SYNC selectable
SDI OUT 1 to 4
3G/HD/SD SDI OUTPUT, BNC (x4)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbps
3G-SDI/HD-SDI/SD-SDI, character signal selectable

Supplied Accessories
Number plates (1 set), Before Using this Unit (1), Operating Instructions (CD-ROM) (1)
