Sony FW-BZ35L Series Professional Displays

The Sony FW-BZ35L Series Professional Displays are crafted to meet the demanding needs of commercial environments, offering a variety of sizes from 55″ to 85″. Each display in the series features a stunning 4K resolution, providing exceptional image clarity and detail. These professional-grade displays are perfect for applications such as digital signage, corporate settings, and retail environments, where high image quality and reliability are essential.

Equipped with advanced display technology, the FW-BZ35L series includes features such as HDR compatibility (HDR10, HLG, Dolby Vision) for enhanced brightness and contrast. The built-in Android OS allows for seamless content management and easy integration with various applications. The displays support various connectivity options including HDMI, USB, and Ethernet, and are designed for continuous 24/7 operation. With TRILUMINOS PRO technology and a 4K HDR Processor X1, the series ensures vibrant colors and sharp images, making it ideal for both high-traffic and high-visibility installations.

Whether you require a compact 55″ display or a large 85″ screen, the FW-BZ35L series offers flexible mounting options and excellent viewing angles. Each model supports portrait and tilt configurations, enhancing versatility for various display needs. The series is also designed with energy efficiency in mind, incorporating dynamic backlight control and power-saving features to minimize operational costs.

Key Features

• 4K resolution for sharp, detailed images
• Built-in Android OS for seamless content management
• HDR support for enhanced image quality
• TRILUMINOS PRO technology for vibrant colors
• Flexible mounting options and portrait/tilt compatibility
• 24/7 operation capability

Technical Specifications

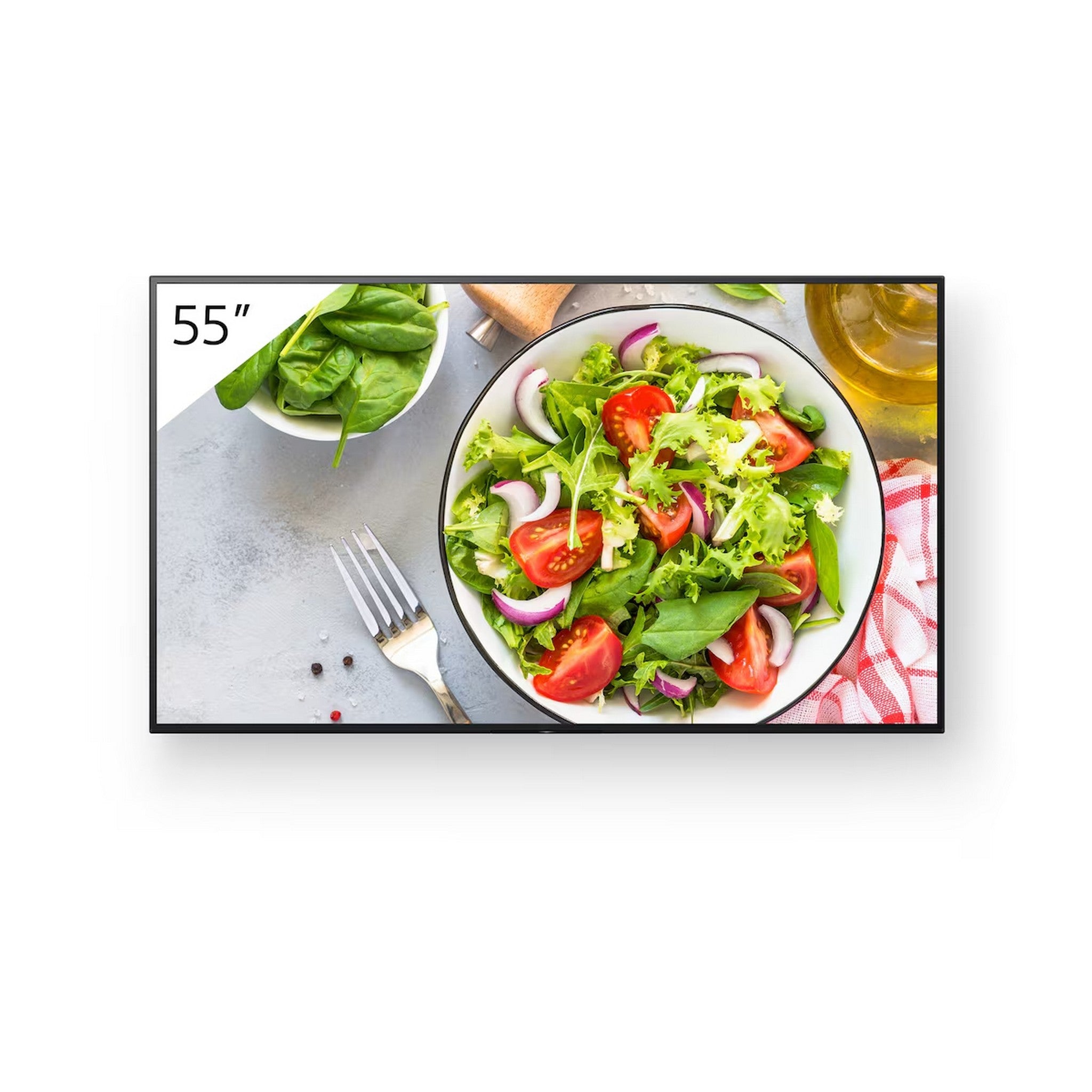

Sony FW-55BZ35L

Dimensions
49″ x 28 1/2″ x 2 7/8″
Weight
34.6 lbs

Screen Size
55”
Brightness
550 cd/m²
Contrast Ratio
1200:1
Dynamic Contrast Ratio
400,000:1
Response Time
8.0 ms
Display Resolution
3840 x 2160
HDR Compatibility
Yes (HDR10, HLG, Dolby Vision)
Aspect Ratio
16:9
Portrait/Tilt Compatibility
Yes
Dimming Type
Frame Dimming
Display Device
LCD
Panel Type
IPS
Backlight Type
Direct LED
TRILUMINOS Display
TRILUMINOS PRO
Color Gamut (DCI-P3)
92%
Picture Processor
4K HDR Processor X1
Operation Time
24/7
Deep Black Non-Glare Coating
No
Haze (%)
1%
Viewing Angle (Right/Left)
178 (89/89) degrees
Viewing Angle (Up/Down)
178 (89/89) degrees
Video Processing
4K X-Reality PRO
Motion Enhancer
Motionflow XR 240 (Native 60Hz)
HDMI Signal
4096 x 2160 p (24, 60 Hz), 3840 x 2160 p (24, 30, 60 Hz), 1080 p (24, 30, 60 Hz), 1080 i (60 Hz), 720 p (24, 30, 60 Hz), 480 p
Speaker Position
Down Firing
Audio Power Output
10W + 10W
Pro Mode
Yes
HDMI Auto Wake-Up
Yes
HTML5 Platform
Yes
Multicast/IPTV
Yes
Operating System
Android TV
On-board Storage
32 GB
Wi-Fi Direct
Yes
Wi-Fi Certified
Yes
Wireless LAN
Integrated
USB Playback Codecs
MPEG1, MPEG2PS, MPEG2TS (HDV, AVCHD), MP4 (XAVCS), AVI, ASF (WMV), MOV, MKV, WEBM, 3GPP, MP3, ASF (WMA), LPCM, WAV, MP4AAC, FLAC, JPEG
On Screen Clock
Yes
Sleep Timer
Yes
On/Off Timer
Yes
Chromecast Built-In
Yes
Apple AirPlay
Yes
IP Control
Yes
RS-232C Control
Yes
HDMI-CEC
Yes
HDCP
HDCP2.3 (for HDMI 1/2/3/4)
Composite Video Input(s)
1 (Side, Mini jack)
HDMI Inputs Total
4 (4 Side)
Analog Audio Input(s) (Total)
1 (Side Analog Conversion)
Digital Audio Output(s)
1 (Side)
USB Ports
2 (Side)
Ethernet Inputs
1 (Side)
VESA® Hole Pitch (W x H)
300 x 300 mm / 11 7/8 x 11 7/8 inch
Wall-Mount Adjuster (Bundled)
Yes
Table-Top Stand (Optional)
Yes
Rated Power Consumption
169 W
Power Consumption (in Standby)
0.5 W
Dynamic Backlight Control
Yes
Power Saving Mode / Back Light Off Mode
Yes
Dimension of TV without Stand (W x H x D)
49″ x 28 1/2″ x 2 7/8″
Dimension of TV with Stand (W x H x D)
49″ x 31″ x 13 3/8″
Dimension of Package Carton (W x H x D)
53 5/8″ x 33 1/8″ x 6 3/8″
Weight of TV without Stand
34.6 lbs
Weight of TV with Stand
36.6 lbs
Weight of Package Carton (Gross)
50.7 lbs

Sony FW-65BZ35L

Dimensions
57 5/8″ x 33 1/4″ x 2 7/8″
Weight
46.7 lbs

Screen Size
65”
Brightness
550 cd/m²
Contrast Ratio
1200:1
Dynamic Contrast Ratio
400,000:1
Response Time
8.0 ms
Display Resolution
3840 x 2160
HDR Compatibility
Yes (HDR10, HLG, Dolby Vision)
Aspect Ratio
16:9
Portrait/Tilt Compatibility
Yes
Dimming Type
Frame Dimming
Display Device
LCD
Panel Type
IPS
Backlight Type
Direct LED
TRILUMINOS Display
TRILUMINOS PRO
Color Gamut (DCI-P3)
92%
Picture Processor
4K HDR Processor X1
Operation Time
24/7
Deep Black Non-Glare Coating
No
Haze (%)
1%
Viewing Angle (Right/Left)
178 (89/89) degrees
Viewing Angle (Up/Down)
178 (89/89) degrees
Video Processing
4K X-Reality PRO
Motion Enhancer
Motionflow XR 240 (Native 60Hz)
HDMI Signal
4096 x 2160 p (24, 60 Hz), 3840 x 2160 p (24, 30, 60 Hz), 1080 p (24, 30, 60 Hz), 1080 i (60 Hz), 720 p (24, 30, 60 Hz), 480 p
Speaker Position
Down Firing
Audio Power Output
10W + 10W
Pro Mode
Yes
HDMI Auto Wake-Up
Yes
HTML5 Platform
Yes
Multicast/IPTV
Yes
Operating System
Android TV
On-board Storage
32 GB
Wi-Fi Direct
Yes
Wi-Fi Certified
Yes
Wireless LAN
Integrated
USB Playback Codecs
MPEG1, MPEG2PS, MPEG2TS (HDV, AVCHD), MP4 (XAVCS), AVI, ASF (WMV), MOV, MKV, WEBM, 3GPP, MP3, ASF (WMA), LPCM, WAV, MP4AAC, FLAC, JPEG
On Screen Clock
Yes
Sleep Timer
Yes
On/Off Timer
Yes
Chromecast Built-In
Yes
Apple AirPlay
Yes
IP Control
Yes
RS-232C Control
Yes
HDMI-CEC
Yes
HDCP
HDCP2.3 (for HDMI 1/2/3/4)
Composite Video Input(s)
1 (Side, Mini jack)
HDMI Inputs Total
4 (4 Side)
Analog Audio Input(s) (Total)
1 (Side Analog Conversion)
Digital Audio Output(s)
1 (Side)
USB Ports
2 (Side)
Ethernet Inputs
1 (Side)
VESA® Hole Pitch (W x H)
300 x 300 mm / 11 7/8 x 11 7/8 inch
Wall-Mount Adjuster (Bundled)
Yes
Table-Top Stand (Optional)
Yes
Rated Power Consumption
218 W
Power Consumption (in Standby)
0.5 W
Dynamic Backlight Control
Yes
Power Saving Mode / Back Light Off Mode
Yes
Dimension of TV without Stand (W x H x D)
57 5/8″ x 33 1/4″ x 2 7/8″
Dimension of TV with Stand (W x H x D)
57 5/8″ x 36″ x 13 3/8″
Dimension of Package Carton (W x H x D)
62 5/8″ x 38″ x 7 1/4″
Weight of TV without Stand
46.7 lbs
Weight of TV with Stand
48.7 lbs
Weight of Package Carton (Gross)
66.1 lbs

Sony FW-75BZ35L

Dimensions
66 1/2″ x 38 1/4″ x 2 7/8″
Weight
69.4 lbs

Screen Size
75”
Brightness
550 cd/m²
Contrast Ratio
1200:1
Dynamic Contrast Ratio
400,000:1
Response Time
8.0 ms
Display Resolution
3840 x 2160
HDR Compatibility
Yes (HDR10, HLG, Dolby Vision)
Aspect Ratio
16:9
Portrait/Tilt Compatibility
Yes
Dimming Type
Frame Dimming
Display Device
LCD
Panel Type
IPS
Backlight Type
Direct LED
TRILUMINOS Display
TRILUMINOS PRO
Color Gamut (DCI-P3)
92%
Picture Processor
4K HDR Processor X1
Operation Time
24/7
Deep Black Non-Glare Coating
No
Haze (%)
1%
Viewing Angle (Right/Left)
178 (89/89) degrees
Viewing Angle (Up/Down)
178 (89/89) degrees
Video Processing
4K X-Reality PRO
Motion Enhancer
Motionflow XR 240 (Native 60Hz)
HDMI Signal
4096 x 2160 p (24, 60 Hz), 3840 x 2160 p (24, 30, 60 Hz), 1080 p (24, 30, 60 Hz), 1080 i (60 Hz), 720 p (24, 30, 60 Hz), 480 p
Speaker Position
Down Firing
Audio Power Output
10W + 10W
Pro Mode
Yes
HDMI Auto Wake-Up
Yes
HTML5 Platform
Yes
Multicast/IPTV
Yes
Operating System
Android TV
On-board Storage
32 GB
Wi-Fi Direct
Yes
Wi-Fi Certified
Yes
Wireless LAN
Integrated
USB Playback Codecs
MPEG1, MPEG2PS, MPEG2TS (HDV, AVCHD), MP4 (XAVCS), AVI, ASF (WMV), MOV, MKV, WEBM, 3GPP, MP3, ASF (WMA), LPCM, WAV, MP4AAC, FLAC, JPEG
On Screen Clock
Yes
Sleep Timer
Yes
On/Off Timer
Yes
Chromecast Built-In
Yes
Apple AirPlay
Yes
IP Control
Yes
RS-232C Control
Yes
HDMI-CEC
Yes
HDCP
HDCP2.3 (for HDMI 1/2/3/4)
Composite Video Input(s)
1 (Side, Mini jack)
HDMI Inputs Total
4 (4 Side)
Analog Audio Input(s) (Total)
1 (Side Analog Conversion)
Digital Audio Output(s)
1 (Side)
USB Ports
2 (Side)
Ethernet Inputs
1 (Side)
VESA® Hole Pitch (W x H)
300 x 300 mm / 11 7/8 x 11 7/8 inch
Wall-Mount Adjuster (Bundled)
Yes
Table-Top Stand (Optional)
No
Rated Power Consumption
235 W
Power Consumption (in Standby)
0.5 W
Dynamic Backlight Control
Yes
Power Saving Mode / Back Light Off Mode
Yes
Dimension of TV without Stand (W x H x D)
66 1/2″ x 38 1/4″ x 2 7/8″
Dimension of Package Carton (W x H x D)
71 7/8″ x 43 7/8″ x 7 3/8″
Weight of TV without Stand
69.4 lbs
Weight of Package Carton (Gross)
136.6 lbs

Sony FW-85BZ40L

Dimensions
74 7/8″ x 42 7/8″ x 2 7/8″
Weight
98.1 lbs

Screen Size
85”
Brightness
550 cd/m²
Contrast Ratio
6000:1
Dynamic Contrast Ratio
400,000:1
Response Time
15.9 ms
Display Resolution
3840 x 2160
HDR Compatibility
Yes (HDR10, HLG, Dolby Vision)
Aspect Ratio
16:9
Portrait/Tilt Compatibility
Yes
Dimming Type
Frame Dimming
Display Device
LCD
Panel Type
VA
Backlight Type
Direct LED
TRILUMINOS Display
TRILUMINOS PRO
Color Gamut (DCI-P3)
92%
Picture Processor
4K HDR Processor X1
Operation Time
24/7
Deep Black Non-Glare Coating
No
Haze (%)
2%
Viewing Angle (Right/Left)
178 (89/89) degrees
Viewing Angle (Up/Down)
178 (89/89) degrees
Video Processing
4K X-Reality PRO
Motion Enhancer
Motionflow XR 240 (Native 60Hz)
HDMI Signal
4096 x 2160 p (24, 60 Hz), 3840 x 2160 p (24, 30, 60 Hz), 1080 p (24, 30, 60 Hz), 1080 i (60 Hz), 720 p (24, 30, 60 Hz), 480 p
Speaker Position
Down Firing
Audio Power Output
10W + 10W
Pro Mode
Yes
HDMI Auto Wake-Up
Yes
HTML5 Platform
Yes
Multicast/IPTV
Yes
Operating System
Android TV
On-board Storage
32 GB
Wi-Fi Direct
Yes
Wi-Fi Certified
Yes
Wireless LAN
Integrated
USB Playback Codecs
MPEG1, MPEG2PS, MPEG2TS (HDV, AVCHD), MP4 (XAVCS), AVI, ASF (WMV), MOV, MKV, WEBM, 3GPP, MP3, ASF (WMA), LPCM, WAV, MP4AAC, FLAC, JPEG
On Screen Clock
Yes
Sleep Timer
Yes
On/Off Timer
Yes
Chromecast Built-In
Yes
Apple AirPlay
Yes
IP Control
Yes
RS-232C Control
Yes
HDMI-CEC
Yes
HDCP
HDCP2.3 (for HDMI 1/2/3/4)
Composite Video Input(s)
1 (Side, Mini jack)
HDMI Inputs Total
4 (4 Side)
Analog Audio Input(s) (Total)
1 (Side Analog Conversion)
Digital Audio Output(s)
1 (Side)
USB Ports
2 (Side)
Ethernet Inputs
1 (Side)
VESA® Hole Pitch (W x H)
400 x 400 mm / 15 3/4 x 15 3/4 inch
Wall-Mount Adjuster (Bundled)
Yes
Table-Top Stand (Optional)
No
Rated Power Consumption
323 W
Power Consumption (in Standby)
0.5 W
Dynamic Backlight Control
Yes
Power Saving Mode / Back Light Off Mode
Yes
Dimension of TV without Stand (W x H x D)
74 7/8″ x 42 7/8″ x 2 7/8″
Dimension of Package Carton (W x H x D)
80 1/4″ x 48 7/8″ x 10 1/4″
Weight of TV without Stand
98.1 lbs
Weight of Package Carton (Gross)
136.6 lbs
