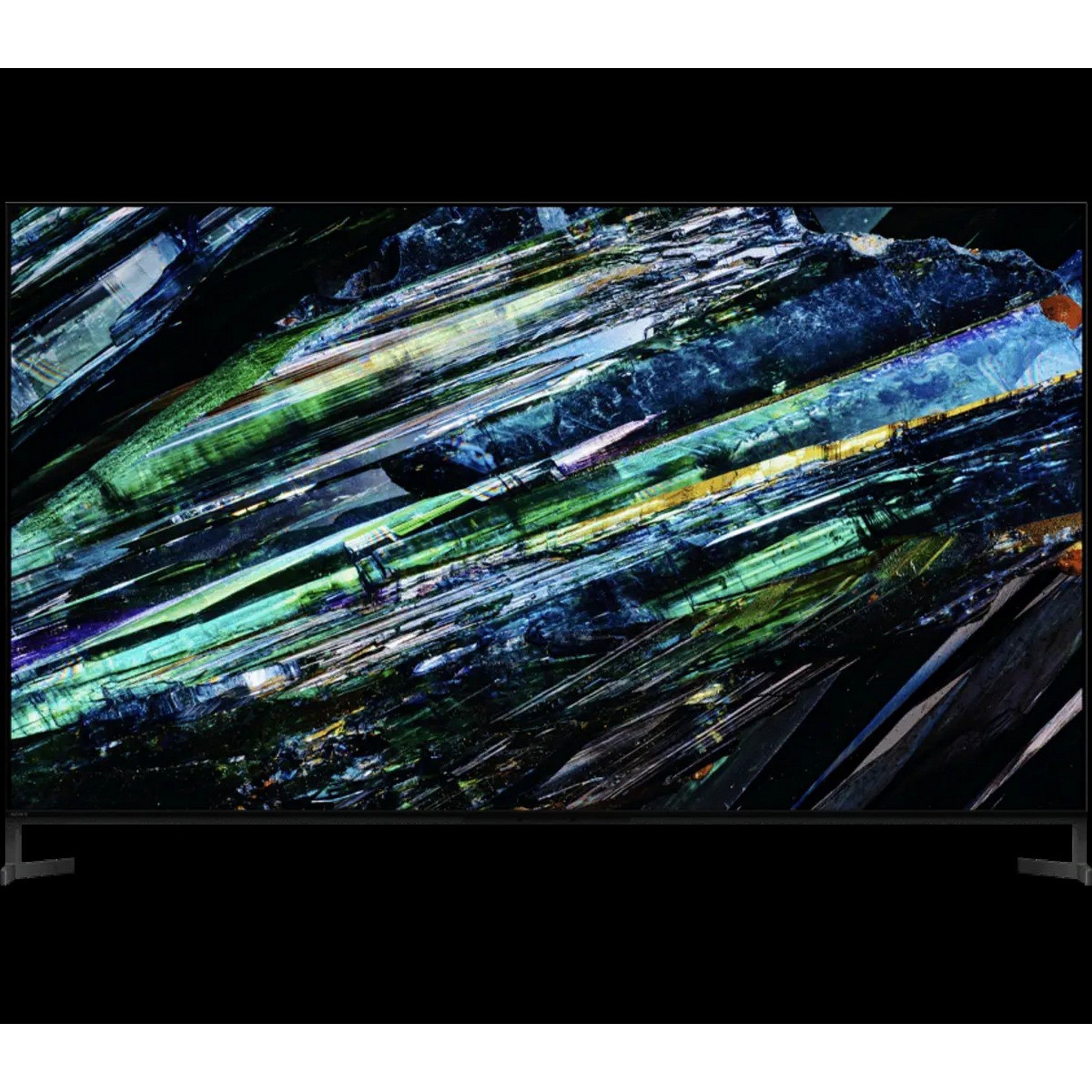

Sony XR-A95L Series 4K OLED TV

Experience the pinnacle of television technology with the Sony XR-A95L series of 4K OLED TVs. Designed to deliver unparalleled picture quality and immersive sound, this series includes three stunning models: the XR55A95L, XR65A95L, and XR77A95L. Each model in this series features Sony’s advanced Cognitive Processor XR, which enhances every image and sound element to provide a more realistic viewing experience. The OLED panel ensures deep blacks and vibrant colors, offering superior contrast and clarity. Whether you’re watching movies, sports, or playing video games, the XR-A95L series brings your content to life with astonishing detail and depth.

The XR55A95L, XR65A95L, and XR77A95L share many features, including the innovative XR OLED Contrast Pro technology that elevates brightness and contrast to new heights, making every scene pop with vivid detail. All models come with Dolby Vision and Dolby Atmos support, ensuring you get a cinematic experience right in your living room. The series also boasts Sony’s unique XR Triluminos Pro color technology, which delivers a broader spectrum of colors and more natural shades for a lifelike viewing experience.

While all models offer these top-tier features, they vary in size to fit different spaces and preferences. The XR55A95L is perfect for smaller rooms or more compact spaces, while the XR65A95L offers a larger screen for a more immersive experience. For those who want the ultimate home theater setup, the XR77A95L provides an expansive display that enhances every viewing session. Each model is crafted with a sleek, minimalist design that complements any decor while maximizing screen space.

Key Features

• 4K OLED display with XR OLED Contrast Pro
• Cognitive Processor XR for enhanced image and sound
• Dolby Vision and Dolby Atmos support
• XR Triluminos Pro color technology
• Sleek, minimalist design

Technical Specifications

BRAVIA XR 77” Class A95L QD-OLED 4K HDR Google TV (2023)

TV System

• Analog: VHF: 2-13 / UHF: 14-69 / CATV: 1-135
• Digital Terrestrial: ATSC / ATSC 3.0 (NEXTGEN TV)
• Digital Terrestrial Coverage: VHF: 2-13 / UHF: 14-69 (2-13/14-36 for ATSC 3.0)
• Digital Cable: Clear QAM
• Digital Cable Coverage: CATV: 1-135
• Number of Tuners: 1 (Digital/Analog)

Color System

• System: NTSC
• Color Space: sRGB / BT709, BT2020, AdobeRGB, DCI

Operating System

• Platform: Google TV
• On-board Storage: 32GB

Display Features

• Type: QD-OLED
• Pixel Contrast Booster: Yes
• Screen Size: 77” (76.6” diagonal)
• Screen Size (WEB): 193 cm
• Resolution: 3840 x 2160
• Viewing Angle: 178° (Right/Left & Up/Down)
• Aspect Ratio: 16:9
• Backlight Type: OLED

Audio Specs

• Channel: 2.2ch
• Speaker Position: Front
• Bass/Treble/Balance: Balance
• Speaker Type: Acoustic Surface Audio+
• Configuration: Actuator x 2, Subwoofer x 2
• Digital Audio Out Format: Two channel linear PCM: 48kHz 16bits, Dolby Audio, DTS

Network Features

• APPLE AIRPLAY: Yes
• APPLE HOMEKIT: Yes
• Home Network Feature: Home Network Client, Home Network Renderer
• Wi-Fi Certified: Yes
• Wi-Fi Standard: a/b/g/n/ac/ax
• Wi-Fi Frequency: 2.4GHz / 5GHz
• Codec for Home Network: Various including MPEG1, MPEG2, AVC, HEVC, MP3, AAC, JPEG, and more
• Wireless LAN: Integrated

Design Features

• Stand Color: Dark Silver
• Bezel Design: Seamless edge
• Cable Management: Yes
• Frame Color: Black
• Stand Design: Aluminum Edge Stand
• Stand Position: 2-way (Standard position / Soundbar position)

Regulation and Standard Compliance

• VESA® Hole Spacing: Yes
• VESA® Hole Pitch: 300 x 300 mm / 11 7/8 x 11 7/8 inch

Measurements (Approx.)

• Dimension (Without Stand): 1716 x 985 x 34 mm / 67 5/8 x 38 3/4 x 1 3/8 inch
• Dimension (Package Carton): 1902 x 1148 x 265 mm / 74 7/8 x 45 1/8 x 10 3/8 inch
• AC Cable Length: 1500 mm
• TV with Stand (Standard Position): 1716 x 1038 x 333 mm / 67 5/8 x 40 7/8 x 13 1/8 inch
• TV with Stand (Soundbar Position): 1716 x 1103 x 333 mm / 67 5/8 x 43 1/2 x 13 1/8 inch
• Stand Width (Standard Position): 1716 mm / 67 5/8 inch
• Weight (Without Stand): 34.9 kg / 77 lb
• Weight (With Stand, Standard Position): 37.8 kg / 83.3 lb
• Weight (Package Carton): 52 kg / 114.6 lb
• Max Qty of Carton Stacking (Vertical): 6

Supplied Accessories

• Operating Instructions: EN, FR, ES
• Batteries: LR03
• AC Power Cord Spec: (Pig-tail 43mm) (US) (2-pin) (flat blades Polarity)
• Quick Setup Guide / Supplement CUE (GA): EN, FR, ES, PT
• Table Top Stand: Separate (Assembly required)
• Voice Remote Control (Supply): RMF-TX910U
• Camera Unit (Bundle): CMU-BC1M

Optional Accessories

• Wallmount Bracket: SU-WL855 (Refer to Country/Area Handling Chart)

Audio Features

• ACOUSTIC AUTO CALIBRATION: Room & User Position Compensation
• Clear Phase: Yes
• S-Master: S-Master Digital Amplifier
• Auto Surround: Yes
• DTS Audio Format Support: Various including DTS
• Simulated Surround Sound: S-Force Front Surround
• Dolby Audio Format Support: Dolby Audio, Dolby Atmos
• VOICE ZOOM: Voice Zoom 2
• Advanced Auto Volume: Yes
• Auto Mute (on No Signal): Yes
• HDMI Input Audio Format: Various including Dolby Atmos, DTS
• ARC Output Format: Two channel linear PCM, Dolby Audio, Dolby Atmos, DTS
• ACOUSTIC CENTER SYNC: Yes (CENTER SPEAKER IN, S-CENTER SPEAKER IN)
• Ready for 360 Spatial Sound Personalizer: Yes (via Bluetooth)
• Vertical Surround Engine: Yes
• Simultaneous Sound Output with TV Speaker: Bluetooth A2DP Device
• HDMI Audio Return Channel (ARC): Yes (eARC/ARC)

Inputs and Outputs

• HDMI Signal: Various resolutions and refresh rates up to 4K120
• HDCP: HDCP2.3 (for HDMI1/2/3/4)
• Bluetooth Profile Support: Version 5.2
• 4K 60P High-Quality Formats: HDMI IN1, IN2 for 4K up to 18Gbps, HDMI IN3, IN4 for 4K up to 48Gbps
• AC Power Input: Pigtail (REAR)
• RF (Terrestrial/Cable) Connection Input: 1 (Side)
• HDMI Inputs Total: 4 (Side)
• Digital Audio Output: 1 (Side / Hybrid with S-Center Speaker Input)
• USB Ports: 2 (Side)
• Ethernet Inputs: 1 (Side)
• RS-232C Input: 1 (Side)
• HDMI PC Input Format: Various resolutions and refresh rates up to 3840x2160p (60Hz)

Power

• Power Requirements (Voltage): AC 120V for UL cUL, AC 110-240V for other
• Power Requirements (Frequency): 60Hz for UL cUL, 50/60Hz for other
• Rated Power Consumption: 590 W
• Power Consumption (Standby): 0.5 W

Video Features

• Object-based Super Resolution: XR Super Resolution
• Precision Color Mapping: Yes
• Face Area Detection: Yes
• Picture Modes: Various including Dolby Vision, BRAVIA CORE calibrated
• Auto Wide: Yes
• Wide Mode: Full, Vertical Fit, Horizontal Fit, Original
• Video Processing: XR 4K Upscaling
• Motion Enhancer: XR OLED Motion
• 24p True Cinema: Yes
• Live Colour™ Technology: Yes
• PhotoTV HD / BRAVIA 照片秀 for China: Yes
• CineMotion/Film Mode/Cinema Drive: Yes
• 4K Processor: Cognitive Processor XR
• HDR Compatibility: Yes (HDR10, HLG, Dolby Vision)
• Panel Refresh Rate (Native Hertz): 120Hz
• Dual Database Processing: Yes
• Dynamic Contrast Enhancer: Yes
• Peak Luminance: XR OLED Contrast Pro
• TRILUMINOS: XR Triluminos Max
• HDR Remaster: XR HDR remaster
• Smoothing: XR Smoothing
• Features for PlayStation®5 Auto HDR Tone Mapping: Yes
• Features for PlayStation®5 Auto Genre Picture Mode: Yes
• XR Clear Image: Yes

Convenience Features

• Features Specified in HDMI 2.1: 4K120, eARC, VRR, ALLM
