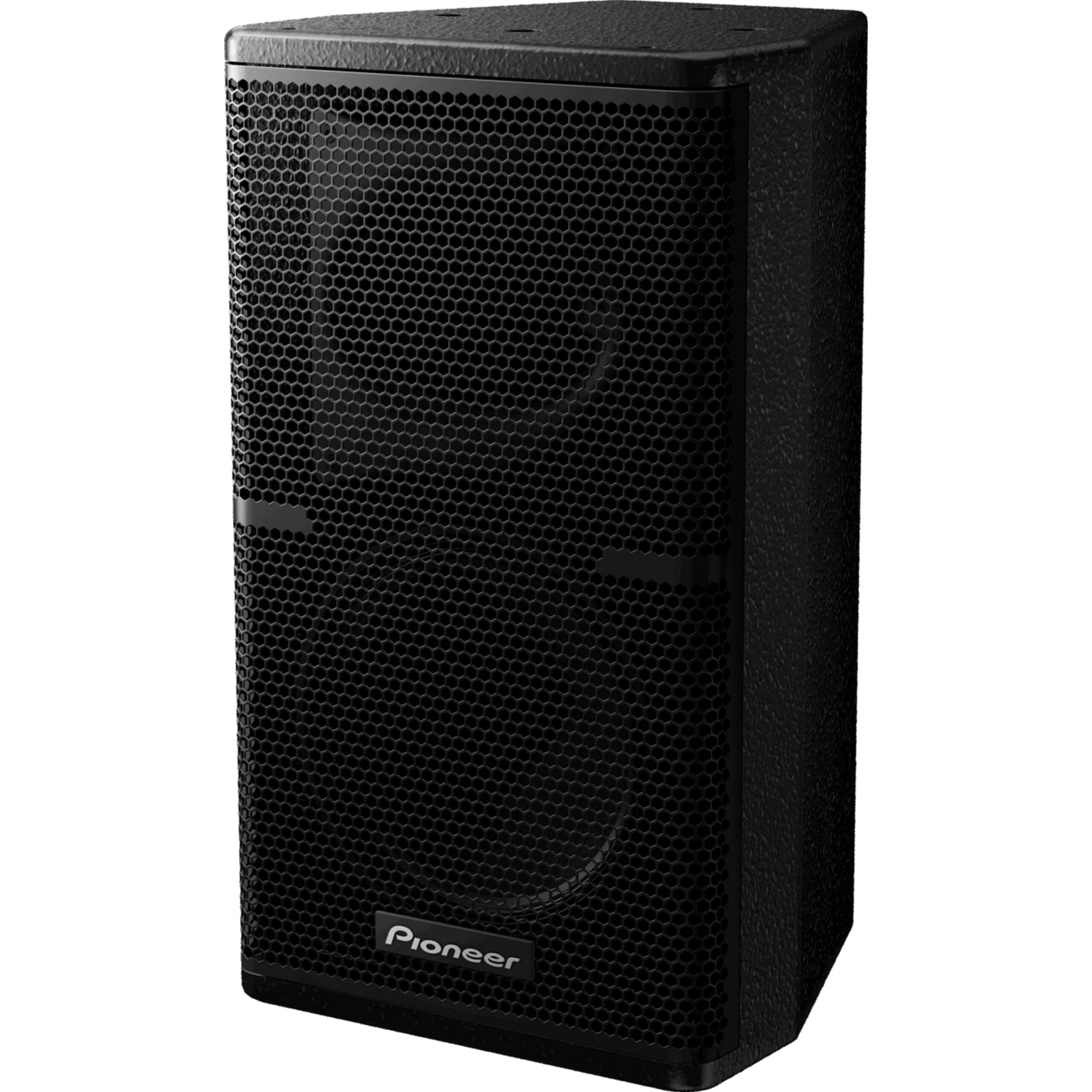

Pioneer Pro Audio XY-81 8-Inch Two-Way Full-Range Loudspeaker, Black

8” two-way full-range loudspeaker

Key Features

• Two-way full range speaker with 8-inch LF driver and a 1-inch compression driver.
• Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments.
• Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation.
• Designed for fixed and mobile applications, with a wide array of flying options.
• Features top hats for quick set-up.
• NL4 INPUT and LINK OUT connections as standard.
• Robust enclosure made from premium multi-laminate birch plywood.
• Impact resistant textured paint finish.

Technical Specifications

Enclosure Type
Two-way passive, reflex-loaded
Rigging and Hardware
8 × M8 threaded mounting points (4 top/4 bottom),
1 × M8 threaded mounting points on rear,
4 × M6 threaded points on rear (for wall mount bracket),
1 × flush handle on rear,
1 × 35 mm polemount socket
Grille
Hex punched steel
Enclosure
15 mm (0.6-inch) birch plywood
Finish
Impact-resistant, Black semi-matt textured
Frequency response
75 hz to 20 kHz
Sensitivity (1W/1m)
91 dB
Nominal Impedance
8 OHM
Power Handling
350 W RMS, 700 W Program
Power Handling AES
116 dB cont., 122 dB peak
Power Handling (RMS/Program)
90 °H × 60 °V, rotatable
Transformer taps
8 inch (200 mm) LF cone driver,
1-inch (25 mm) exit neodymium HF compression driver
Maximum SPL
Asymmetric internal passive crossover
Dispersion
2 × Neutrik SpeakON NL4
Dimensions ( W x H x D)
262 × 462 × 255 mm
(10.3 × 18.2 × 10-inch)
Weight
12 kg (26.5 lbs)
Suggested Power Amplifier
Recommended : K2DSP
Minimum : M20DHDSP
Accessories
polemount socket cover
(-W model only)
