Pioneer Pro Audio XY-115S 15-Inch Bass Reflex Subwoofer, White Store Online

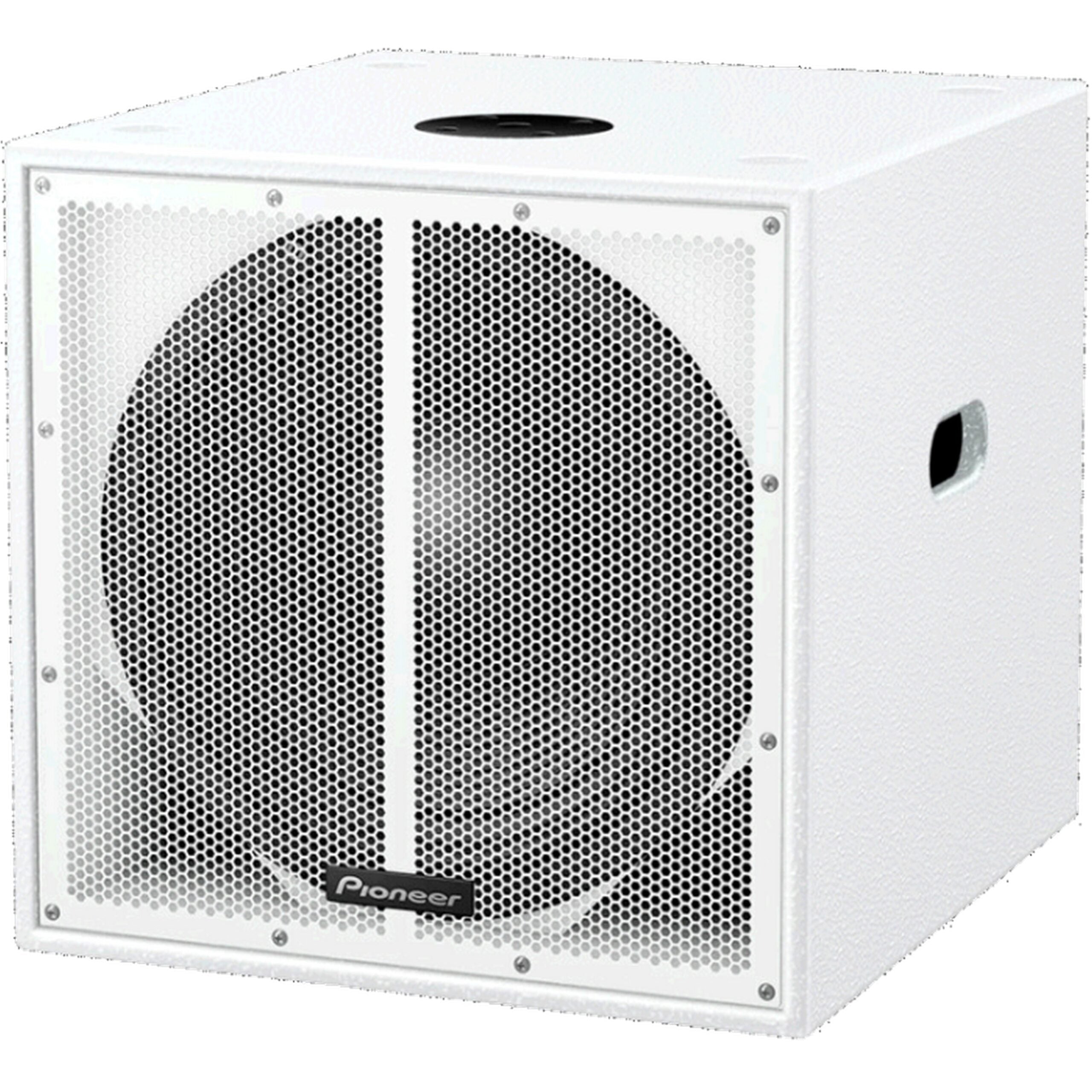

Pioneer Pro Audio XY-115S 15-Inch Bass Reflex Subwoofer, White

15” bass reflex subwoofer

Key Features

• High-power subwoofer with an 15-inch, low-frequency driver.
• Capable of reproducing deep bass as low as 45 Hz without distortion.
• Strong pillars installed in the cabinet ensure rigidity against the most powerful bass.
• Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-122,XY-101 and XY-81).
• NL4 INPUT and LINK OUT connections as standard.
• Pole mount for quick set-up with other Pioneer products.
• Robust enclosure made from premium multi-laminate birch plywood.

Technical Specifications

Enclosure Type
Single driver, reflex-loaded subwoofer
Rigging and Hardware
2 × flush handles (1 left/1 right),
1 × M20 polemount socket for mid/high enclosures,
4 × rubber feet (bottom) and 4 ×mating recesses (top)
Grille
Hex punched steel
Enclosure
15 mm (0.6-inch) birch plywood
Finish
Impact-resistant, Black semi-matt textured
Frequency response
45 Hz to 150 Hz
Sensitivity (1W/1m)
96 dB (half space)
Nominal Impedance
8 OHM
Power Handling
700 W RMS, 1400 W Program
Power Handling AES
124 dB cont., 130 dB peak (half space)
Transformer taps
15 inch (380 mm) neodymium LF cone driver
Dispersion
2 × Neutrik SpeakON NL4
Dimensions ( W x H x D)
472 × 466 × 510 mm
(18.6 × 18.3 × 20.1 inch)
Weight
30 kg (66.1 lbs)
Suggested Power Amplifier
Recommended : K3DSP
Accessories
polemount socket cover
(-W model only)
