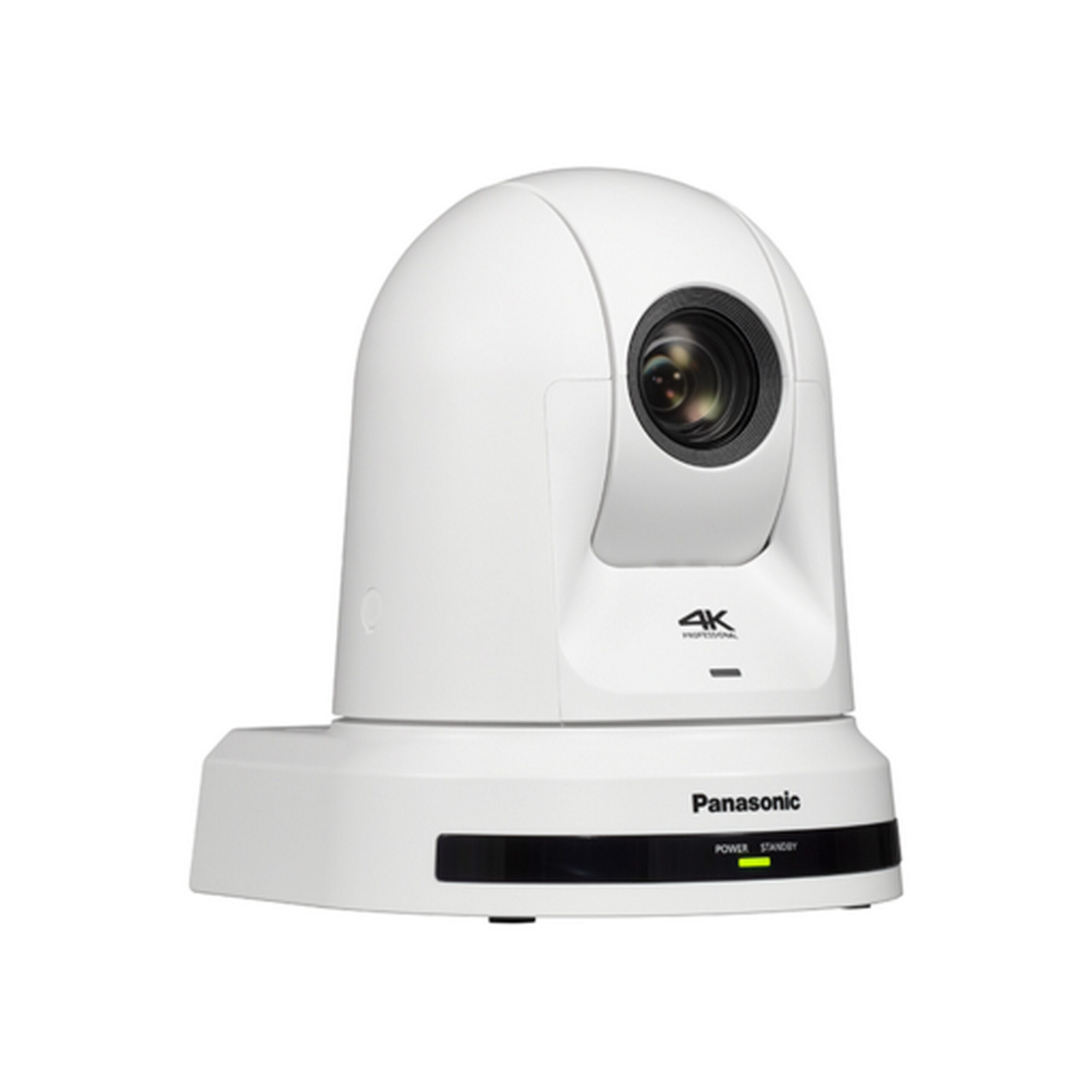

Panasonic AW-UE40 4K30 PTZ Camera, 24x Optical Zoom, White

Remote cameras enhance visual communication in a variety of applications ranging from online classes to online seminars. The AW-UE50/UE40 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting locations or conditions. The AW-UE50/UE40 offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilize it. The excellent flexibility of the product simplifies wiring and operation. Linkage with online conference software or online application is possible, so online video streaming is easy to initiate. The AW-UE50/UE40 is a standard model perfect for people who want to utilize online video streaming more frequently or enhance the quality of online video streaming.

Key Features

• 24x Optical Zoom
• Supports NDI|HX version 2 and SRT*1 protocol
• IT Certifications
• New Direct Drive System for improved responsiveness and quietness
• Excellent system flexibility to achieve smart wiring and smooth operation

Technical Specifications

LENS
Motorized Optical
24x zoom, F1.8 to F4.0
General
MINIMUM ILLUMINATION
3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Zoom
Optical zoom: 24x
i.Zoom UHD 28x, FHD 36x
Digital extender zoom: 1.4 x, 2 x
Horizontal Resolution
UHD: 1,500 Typ (Center area) FHD: 1,000 Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*3 (Super Gain function equipped: 37 dB to 42 dB)
WHITE BALANCE
ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
AWB: AWB-A / AWB-B
VAR (selectable between 2000 K and 15000 K by designating a value)
Storage Temperature
-20 °C to 50 °C (-4 °F to 122 °F)
Current consumption
1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1200 mm (3.9 ft) Wide end: 100 mm (0.33 ft)
Gamma
HD / Normal / Cinema1 / Cinema2 / Still Like
Input Connector
DC 12 V IN
Pan/Tilt Operation Speed
Speed range: 0.08°/s to 60°/s (Normal mode) *7
3 speed modes installed Normal:60°/s, Fast1:90°/s, Fast2:180°/s
Quietness
NC25 or less
Tilting Range
-30°to 90°*8
Imaging Sensors
1/2.5-type 4K MOS x1
Frame Mix
Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Chroma Amount Variability
OFF, -99 ％ to 99 %
Ambient Operating Humidity
20 ％ to 90 ％ (no condensation)
Finish
AW-UE40W: WhiteAW-UE40K: Black
Other Functions
Image Resolution
1920×1080, 1280×720, 640×360, 320×180
Note
*1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:To ensure safety, the unit must be secured using the mount bracket supplied.*7:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode. *8: The main unit may appear in the video depending on the pan/tilt position. *9: Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support. *10: NDI is a new protocol developed by NewTek, Inc. that supports IP video production workflow. *11: NDI is a registered trademark of NewTek, Inc. in the United States. *12: In this instance, NDI is used to indicate low latency with high bandwidth NDI, NDI|HX is used to indicate high efficiency low bandwidth NDI|HX. In the NDI|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI|HX version 2 and Full HD output. *13: For details, please contact a sales representative of Panasonic. To use NDI|HX, the driver must be installed and activated. *14: Non-synchronous with SDI-OUT
Panning range
±175°
Mass
Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket) Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*6
Controller Supported
AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Dimensions (W x H x D) (mm)
160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket)
Dimensions (W x H x D) (inch)
6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket)
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Supported operating systems and web browsers *9
Image Streaming Mode
JPEG (MJPEG), H.264, H.265, NDI|HX version 2*10,11,12,13 (H.264)
Image Transmission setting (JPEG)
Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: <60 Hz> 5fps / 15fps / 30fps / 60fps, <50 Hz> 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: <60 Hz> 30fps / 60fps, <50 Hz> 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Tally LED display color
red / green
PoE+
IEEE802.3at compliant: DC42 to 57 V (Camera Input) (Software authentication (LLDP) is supported)
NDI Support
NDI|HX version 2: Upgradable
Electronic Shutter Speed | 59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 29.97p
1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 50p/50i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 25p
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan | 59.94p/59.94i
60.0 Hz to 7200 Hz
Synchro Scan | 23.98p/24p
24.0 Hz to 7200 Hz
Synchro Scan | 50p/50i
50.0 Hz to 7200 Hz
Synchro Scan | 25p
25.0 Hz to 7200 Hz
Mic/line input
AAC compatibility (compatible with IP only)
3.5 mm stereo mini jack
During MIC input
Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
Supply voltage: 2.5 V±0.5 V (plug-in power compatible)
Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
Approx. 20 kΩ (when plug-in power is turned OFF)
During LINE input
Input level: -10 dBV
Input impedance: Approx. 3 kΩ
Input volume variable range: -36 dB to 12 dB (3 dB step)
Embedded audio output level: -12 dBFS
Sampling frequency: 48 kHz
IP connecting cable
If you have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
If you don’t have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
AW protocol connecting cable
LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Input/Output Connector | LAN
LAN terminal for IP control (RJ-45)
Input/Output Connector | RS-422
CONTROL IN RS422A (RJ-45)
Video Output | HDMI
HDMI 1.4 connector, 4:2:2/10bit
HDCP is not supported.
Viera Link is not supported.
Output Format | HDMI | 4K
2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format | HDMI | HD
1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Windows
Windows 10
Windows Internet Explorer 11 (32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac
Mac OS v11.0.1 / Safari 14.01
Mac OS v11.0.1 / Google Chrome
Mac OS v10.15 / Google Chrome
Mac OS v10.14 / Google Chrome
Android
Android OS
Google Chrome
iPhone / iPad
iOS
Safari
iPadOS
Image Stabilization
OIS 2-axis
MENU switching: Select between Off/O.I.S.
Supported protocol | IPv4
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Supported protocol | IPv6
TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
New Functions
Image Resolution | NDI|HX version 2
1920×1080, 1280×720
Audio Compression Type | NDI|HX version 2
AAC-LC, 48 kHz, 16 bit, 2 ch
F-Number Display
Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video
Supported*14
Power LED
ON/OFF control
Tripod Screw Penetration Measures
Possible
Pan/Tilt Mechanical Method
New Direct Drive System
Privacy Mode
The lens surface faces backward when standing by (ON/OFF)
* Default is OFF
Image Transmission Setting (NDI|HX version 2)
Transmission Type: TCP/UDP, Unicast/Multicast
