Marshall Electronics 20X Full-HD60 IP PTZ Camera

The Marshall Electronics 20X Full-HD60 IP PTZ Camera is a powerful and versatile solution for high-quality video broadcasting and surveillance. Featuring a 2 Megapixel Full-HD Sensor (Sony 1/2.8″), this camera delivers stunning clarity and detail, enabling users to capture distant subjects with its exceptional 20x optical zoom, ranging from 5.3mm to 110mm and starting at a horizontal angle of view of 60°. Available in two stylish colors—black (CV620-BI) and white (CV620-WI)—the camera seamlessly blends into various environments while providing outstanding performance in both indoor and outdoor settings.

Both the CV620-BI and CV620-WI models are equipped with user-friendly controls and advanced features that enhance operational flexibility. They support multiple video formats, including Full-HD resolutions of 1920x1080p, 1920x1080i (interlaced), and 1280x720p at frame rates of 60, 59.94, 50, 29.97, and 25 frames per second. The integrated IP connectivity, offering protocols such as DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, and RTMPS, ensures easy setup and control over a network, making these cameras ideal for both fixed and mobile applications.

With a remarkable pan range of 340° and a tilt range of 120°, the cameras offer various selectable PT speeds, allowing users to adapt to dynamic environments. Features like built-in privacy masking and various preset positions enable users to customize the camera’s operation to fit their specific needs. The 3GSDI, HDMI, and IP outputs provide flexible connectivity options for naverse broadcasting setups.

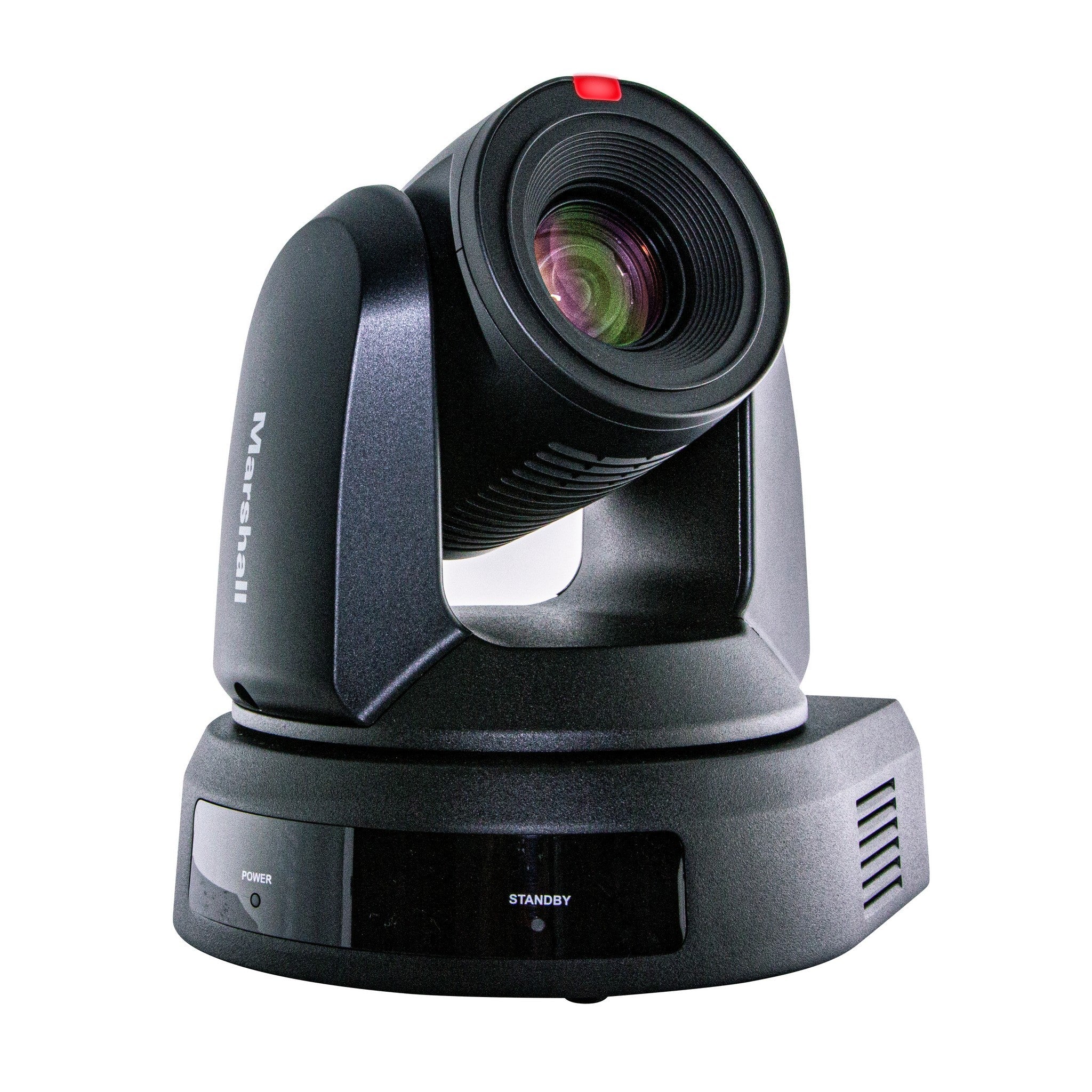

Whether you choose the sleek black finish of the CV620-BI or the modern white look of the CV620-WI, you can expect the same level of quality and performance. Both models share robust construction, ensuring reliability in naverse environments. With the ability to remotely pan, tilt, and zoom, along with 3.5mm TRS Stereo Audio input/output capabilities for Mic/Line, the Marshall Electronics PTZ camera series is engineered to meet the demands of today’s multimedia landscape.

Key Features

• 20x optical zoom for superior image detail
• Full HD 1080p video resolution
• IP connectivity for easy integration into networks
• Multiple video formats supported (H.264, MJPEG)
• Pan, tilt, and zoom capabilities for flexible operation
• Built-in privacy masking for secure environments
• Multiple preset positions for quick access to important views

Technical Specifications

Common Specifications for CV620-BI and CV620-WI

Dimensions
7.28″ x 7.32″ x 6.85″ (185 x 186 x 174 mm)
Weight
4.19 lbs (1.9 kg)
Sensor
SONY IMX327
Video Format
1080p/60, 1080p/30, 1080p/59.94, 1080i/59.94, 1080p/50, 1080p/25, 1080p/29.97, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
Video Output (HD) Interface
3G-SDI / HDMI / Ethernet (IP)
Optical Zoom
20X
Horizontal Viewing Angle
60° (Wide) to 3° (Tele)
Pan/Tilt Angle
340° pan and 120° tilt
Panning Speed
variable
Aperture
F1.6~F3.6
Focal Length (lens spec)
5.33~110 mm
Shutter Speed
1/1 to 1/10,000
Minimum Object Distance
∞~1.5m
Minimum Illumination
1.0Lux (F1.6, 50IRE, 30fps)
Focus System
Auto, One-push AF, Manual
Gain Control
Auto/ Manual
White Balance
Auto/ Manual
Exposure Control
Auto/Manual
3D NR
yes
Image Flip
mirror/ flip/ mirror + flip
Preset Positions
128 savable with optional transition speeds
Control Interface
VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
Control Protocol
ONVIF, VISCA, PELCO D
Tally Light
Yes, Front Tally Light
PoE
IEEE 802.3at (PoE+)
Video Stream
RTSP, RTMP, RTMPS, SRT, MPEG-TS
Video Compression
H264: 25/30/50/60 fps 1080p/720p, MJPEG 1080p 30/15 fps
Audio Input
Line in/ Mic in
Audio Output
Ethernet / SDI / HDMI
IR Pass-through
Yes
IR Receiver
Yes
IR Remote Control
Yes
Power Consumption
DC: 16W max, PoE+: 18W max
Storage Temps
-20 to 60°C
Operating Temps
0°C to 40°C

Available Models
CV620-BI (Black), CV620-WI (White)
