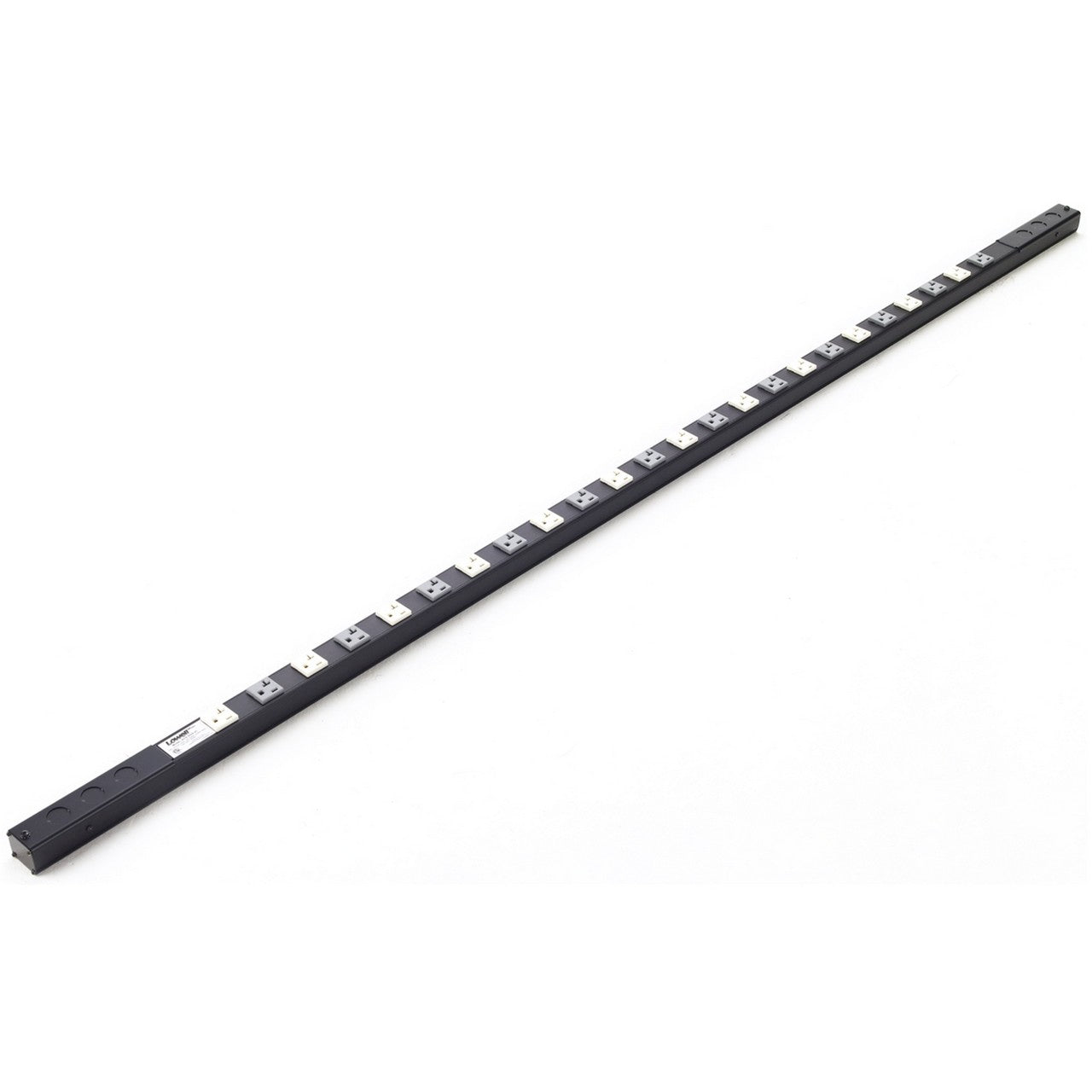

Lowell ACS-2024-2C Power Strip-20A, 2-Circuits 24 Outlets, Pigtails, 70in L

AC power strip with a total of 24 (20A) NEMA outlets on two circuits.

ETL Listed 2-circuit power strip for hardwire applications shall be Lowell 20A Model ACS-2024-2C. Power strip shall include twelve white single outlets on circuit 1 and twelve light grey single outlets on circuit two. Circuit layout shall be alternate with wide spacing to accept power supplies. Termination shall be by color coded leads accessible through knockouts on both ends of the chassis. Each circuit shall be provided with separate neutrals, making It’suitable for independent circuit connection or multi-wire branch circuit connection. Receptacle ground and chassis bonding connections shall be independent, allowing strips to be used in isolated ground applications. Strip shall include mounting clips and screws for vertical installation in racks with adjustable or fixed rails. Tie wraps shall also be provided to secure large power supplies where applicable. Chassis shall be 70 inches.

Technical Specifications

Amperage
20A
Outlets
24 NEMA, spaced for power supplies
Symmetrical design allows power connections to be made from either end or both ends for feed through without an additional J-box.
Power Rating
120VAC, 20A
Chassis
Steel with black finish (70 in.)
Termination
Hardwired, pigtail leads at both ends
Mounting Aids
Universal mounting brackets, screws, ties
