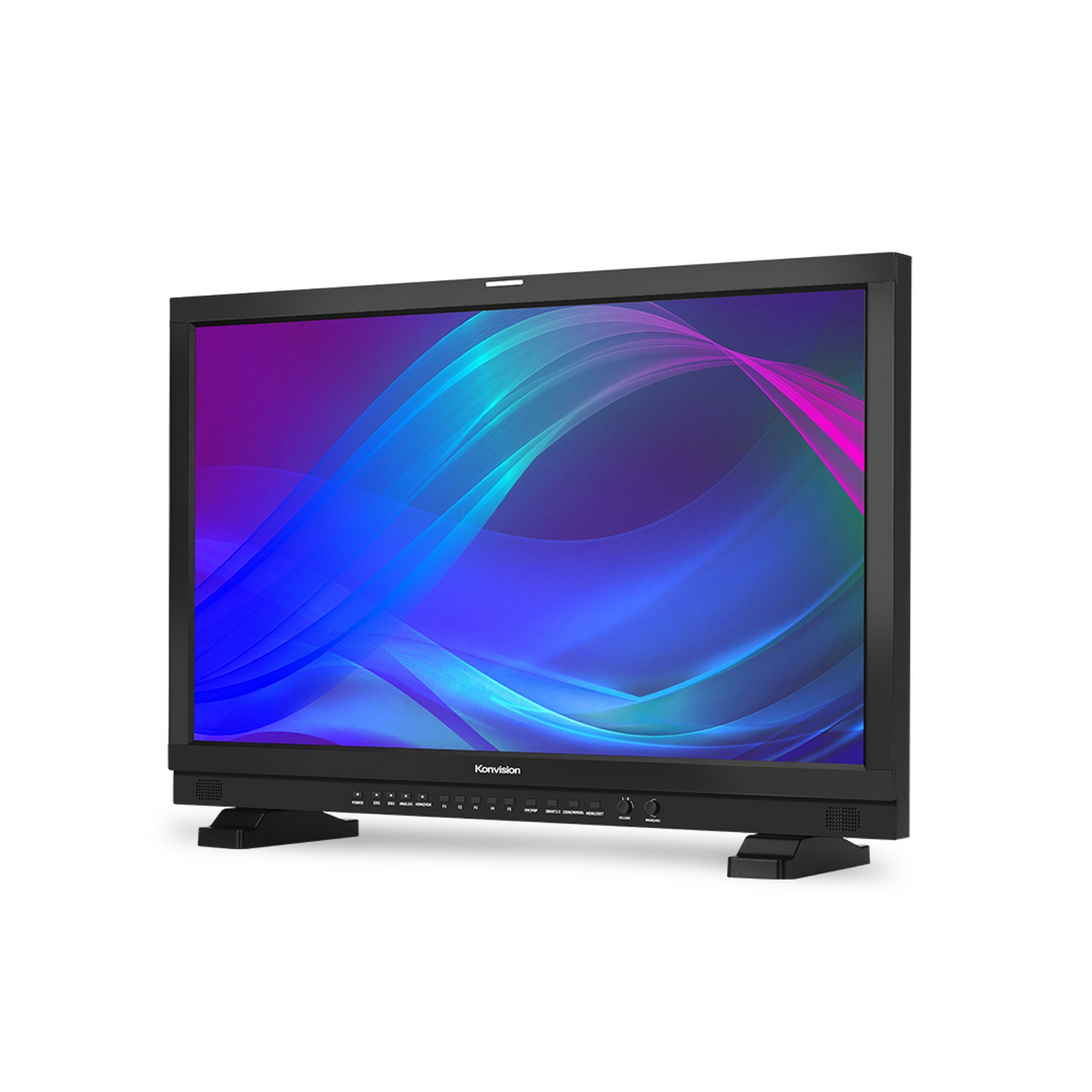

Konvision KVM-2451W 24 Inch FHD 1920×1080 Broadcast Monitor

KVM-2451W is a 24inch multi-functional monitor that supports full video formats.It provides with waveform, vectorscope, audio meter and so on professional broadcast features. Efficient features make it a nice choice for color grading, production, post-production and editing, as well as studio and OB truck.

3D LUT Color Calibration
Compatible with ColorSpace and Calman calibration software, Konvision monitors apply K10-A probe (professional level) to achieve a precise color. Monitor’s also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

Darkness Check
Increasing the brightness and contrast ratio in the dark areas, Darkness Check can show more shadow details of the input signal. Darkness Check can be used for double checking the shadow detail of the dark areas to avoid any missing information.

Part Zoom In
Part Zoom in function allows user Zoom In any part of the picture, to watch picture details more clearly, and assist for focus.

PIP & PBP
Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

Pixel Measurement
Select any single pixel or block of pixels by using a movable cross-hair to obtain real time readouts of the Y&RGB values of the selected position. This function is to get real time Y&RGB measurement values of any point of the input signals and compare the values of of any two points.

Waveform (Alarm), Vectors
SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time. When luminance reaches or exceeds the preset value, the over exposure areas will be red marked (Waveform Alarm).

False Color
Check exposure of the image. Blue, cyan, green, yellow, orange and red color be displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enables an achievement of proper exposure without applying external test equipment.

Focus Assist
Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red color where the sharp edges appear on the screen.

Zebra
Display the overexposed areas (too bright) of the image with zebra stripes, aids the camera operator to control the luminance, in order to avoid over exposure. This feature is very effective for proper exposure.

Picture Flip
Horizontal picture flip function allows negative image, is very useful in the studios/virtual studios, such as weather forecast, news and other programs, etc.

Key Features

• 1920×1080 resolution
• 3G-SDI 4:4:4 12bIt’signals (SMPTE 425M A/B)
• 1x DVI-D input,1x composite video input
• Darkness Check
• Audio Level Meter, Blue/Mono Only
• Dynamic UMD(TSL3.1/4.0), Time Code Display
• F-key configuration and Key Lock function
• 3D LUT Color calibration with ColorSpace & CalMAN
• Waveform, Vectorscope for DVI
• PBP/PIP (size/position adjustable)
• False Color
• 12 Bit Video Processing, image no delay
• 2x2K/3G-SDI inputs and outputs (2K/3G/HD/SD-SDI auto detect)
• Part Zoom In
• H/V Delay, Over Scan, Markers
• Remote control: Ethernet/GPI, RS422 In/Out
• LED Tally Light and On-screen Tally display
• Built-in AC in and DC in power supply
• Waveform, Vectorscope for SDI1 and SDI2
• Pixel Measurement and Audio Phase
• Picture Flip, Focus Assist
• Zebra

Technical Specifications

Panel
Display Size
24”
High Resolution
1920×1080
Aspect Ratio
16:9
Wide Viewing Angle
178 Degrees (H) / 178 Degrees (V)
Pixel Pitch
0.2745×0.2745(mm)
Color Depth
16.7M
Back Light
LED
Brightness
250cd/m2
Contrast Ratio
1000:1
INPUT
2 x BNC
SDI 1/2 Channel Inputs (3G/HD/SD-SDI Auto-Detected)
3 x BNC
YPbPr/Video/Y/C
1 x DVI-I
DVI/VGA Input
1 x HDMI
HDMI Input (optional)
INPUT
2 x BNC
SDI 1/2 Channel Inputs (3G/HD/SD-SDI Auto-Detected)
3 x BNC
YPbPr/Video/Y/C
1 x DVI-I
DVI/VGA Input
1 x HDMI
HDMI Input (optional)
COMPANTIBLE SDI FORMATS
SMPTE-425M-A/B
4:2:2 YCbCr 10-bit
1080P (50/59.94/60)
4:4:4 YCbCr/RGB 10-bit
1080i (60/59.94/50)
4:4:4 YCbCr/RGB 12-bit
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit
1080i (60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit
720P (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-274M
1080i (60/59.94/50)
1080P(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M
720P (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-260M
1035i (60/59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
Audio In / Out
SDI Audio In
16 Channels Embedded Audio
Audio Meter Display
H/V Audio Level Meter Display (VU+PPM)
Analog Audio Input
3.5mm Headset Switch Cable
Audio Headset Output
3.5mm Headset Jack
Built-in Speaker
2.5Wx2
GENERAL
Operating Temperature
-10 Degrees Celsius~50 Degrees Celsius
Input Voltage
DC 12V & AC 100-240V 50/60Hz
Power Consumption
37W
Power-Saving Mode
Turn off unimportant Key Automatically if no signal input
VESA Installation
VESA MIS-D(100X100mm)
Shell Materials
Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell
Accessory
Power Cord /Desktop stand
