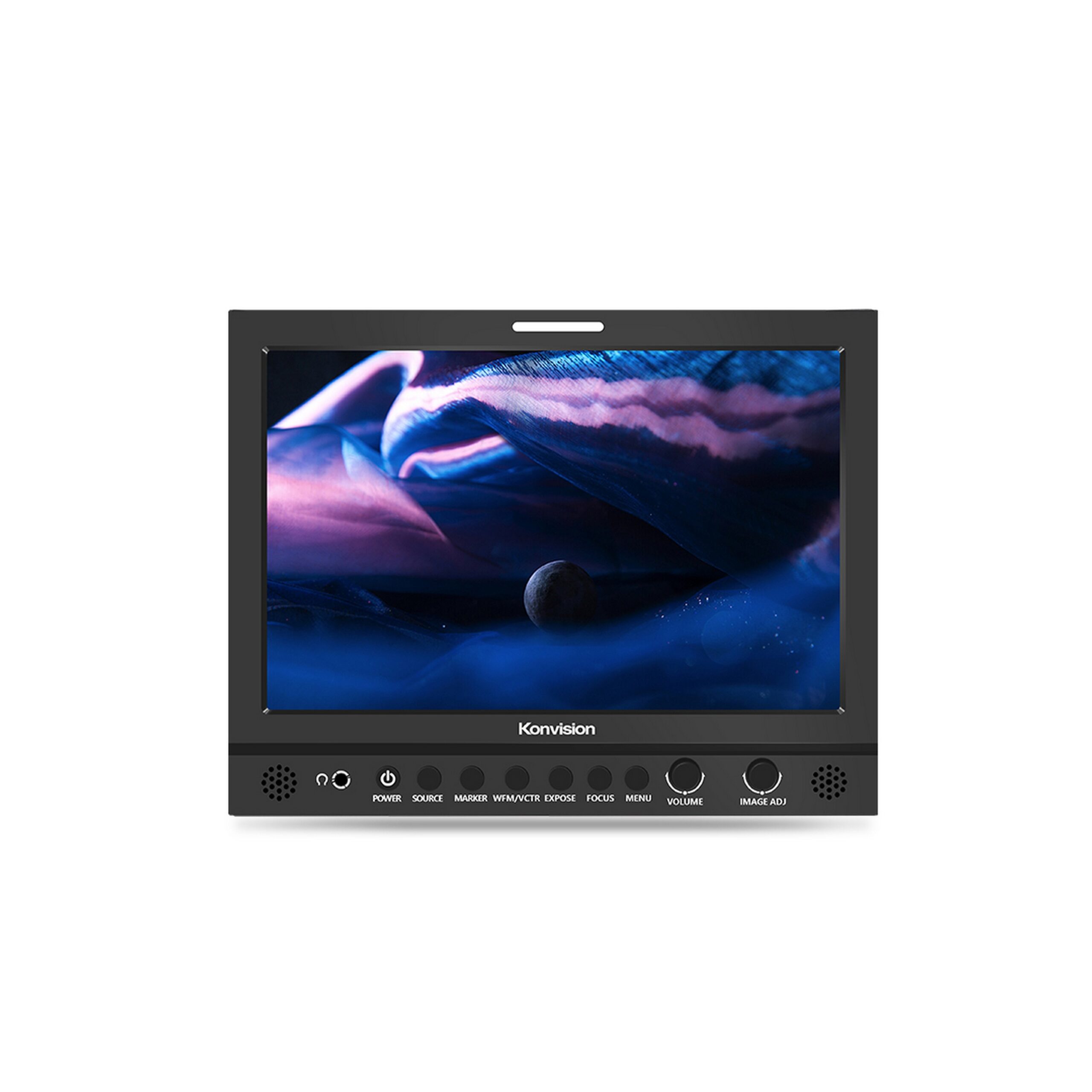

Konvision KVM-0960W 9-Inch FHD 1920×1200 Broadcast LCD Monitor

KVM-0960W, a portable 9inch monitor with 1920×1200 FHD resolution. Integrated 3D LUT color calibration technology, Built-in waveform, false color, focus assist etc features, makes it a nice choice for shooting and more applications.

PIP & PBP
Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

Waveform
SDI supports Waveform, when luminance reaches or exceeds the preset value, the over exposure areas will be red marked (Waveform Alarm).

False Color
Check exposure of the image. Blue, cyan, green, yellow, orange and red color be displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enables an achievement of proper exposure without applying external test equipment.

Focus Assist
Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red color where the sharp edges appear on the screen.

Zebra
Display the overexposed areas (too bright) of the image with zebra stripes, aids the camera operator to control the luminance, in order to avoid overexposure. This feature is very effective for proper exposure.

Picture Flip
Horizontal picture flip function allows negative image, is very useful in the studios/virtual studios, such as weather forecast, news and other programs, etc.

PIP & PBP
Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

Waveform
SDI supports Waveform, when luminance reaches or exceeds the preset value, the over exposure areas will be red marked (Waveform Alarm).

False Color
Check exposure of the image. Blue, cyan, green, yellow, orange and red color be displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enables an achievement of proper exposure without applying external test equipment.

Focus Assist
Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red color where the sharp edges appear on the screen.

Zebra
Display the overexposed areas (too bright) of the image with zebra stripes, aids the camera operator to control the luminance, in order to avoid over exposure. This feature is very effective for proper exposure.

Picture Flip
Horizontal picture flip function allows negative image, is very useful in the studios/virtual studios, such as weather forecast, news and other programs, etc.

Key Features

• 9-inch 1920×1200 resolution
• Supports 4:4:4 SMPTE425-AB signal
• 1 x Video input (share with SDI1 input BNC)
• Waveform, False Color, Focus Assist, Zebra
• Time Code, Blue/Mono Only
• Picture Flip, PIP/PBP
• Dynamic & Static UMD, IMD Tally Display (TSL V3.1/4.0)
• Aluminum Alloy Casing
• 2 x 3G/HD/SD-SDI inputs
• 1 x 3G/HD/SD-SDI output, 1 x HDMI input & output
• Support user 3D LUT files import
• Aspect Ratio, Safe & Area Marker, UMD
• Darkness Check, Video Freeze, Fast Mode
• 16CH SDI & 2CH HDMI embedded audio
• 3.5mm headset jack, Tally Indicator

Technical Specifications

Panel
Display Size
9”
High Resolution
1920×1200
Aspect Ratio
16:10
Wide Viewing Angle
170 Degrees (H) / 170 Degrees (V)
Pixel Pitch
0.03325×0.09975(mm)
Color Depth
16.7M
Back Light
LED
Brightness
450cd/m2
Contrast Ratio
800:1
INPUT
2 x BNC
SDI 1/2 Channel inputs
(Auto-detected and compatible to 3G/HD/SD-SDI)
1 x BNC
Composite Video input
(Share with SDI 1 input BNC)
1 x HDMI
HDMI input (optional)
OUTPUT
1 x BNC
SDI signal output
(3G/HD/SD-SDI Auto-Detected)
1 x HDMI
HDMI output(optional)
COMPANTIBLE SDI FORMATS
SMPTE-425M-A/B
4:2:2 YCbCr 10-bit
1080p (60/59.94/50)
4:4:4 YCbCr/RGB 10-bit
1080i (60/59.94/50)
4:4:4 YCbCr/RGB 12-bit
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit
1080i (60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit
720p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-274M
1080i (60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M
720p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-260M
1035i (60/59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
Audio In / Out
SDI/HDMI Audio In
16 Channels SDI/2 Channels HDMI embedded audio
Audio Meter Display
H/V Audio Level Meter Display (VU+PPM)
Audio Headset Output
3.5mm Headset Jack
Built-in Speaker
2.0Wx2
GENERAL
Operating Temperature
-10 Degrees Celsius~50 Degrees Celsius
Input Voltage
DC 8.4V 16.8V
Power Consumption
18 W
Power-Saving Mode
Turn off unimportant Key Automatically if no signal input
Accessory
Power adaptor
