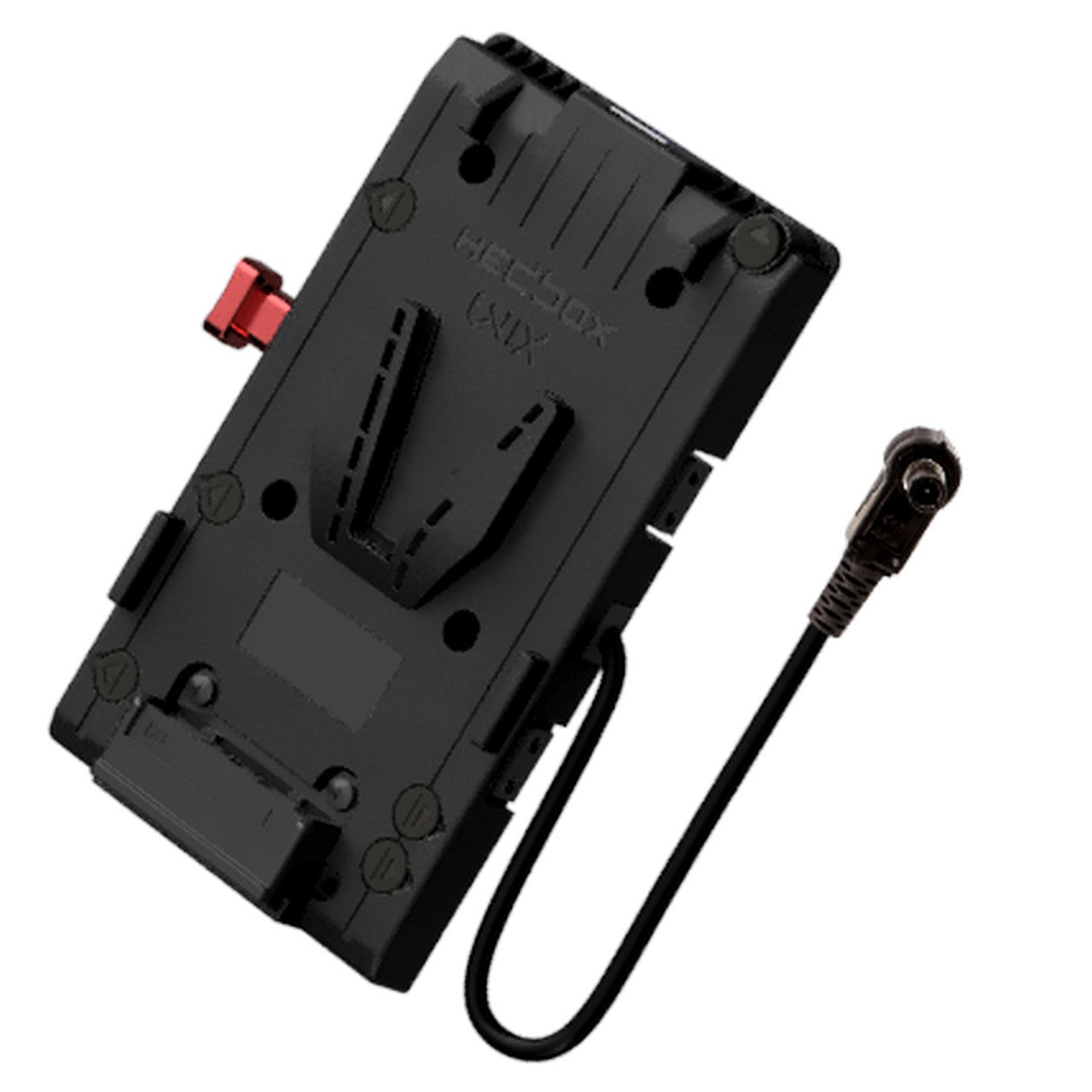

HEDBOX UNIX-SO V-Lock Mount Adapter Battery Power Plate with Sony C-Pin Male Connector

With an installed breakaway DC power cable, UNIX-SO can be used to power various Sony Camcorders. The breakaway cable is a 50cm long, standard Sony C-pin Male connector.

Key Features

• With an installed breakaway DC power cable, UNIX-SO can be used to power various Sony Camcorders. The breakaway cable is a 50cm long, standard Sony C-pin Male connector
• Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate
• Unix provides three D-Tap 14.8V DC power outputs. Three D-taps allow for extra powering for cameras, on board recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc
• With multiple mounting holes, (4 x M3 x 12 screws provided) Unix is able to mount on to any device or camera connection
• The USB 5V/2.1A output can be used to power any external USB electronic devices

Technical Specifications

Model
UNIX-SO V-Mount Adapter Power Plate
Battery Mount
V-Lock Mount
D-Tap Power Out 1
DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 2
DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 3
DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
USB Output
DC 5V / 2.1A /10W (Max)
Breakaway DC Cable
DC 12V / 2.1A / 25W (Max) 50cm (length)/ Regulated Sony C-pin Jack
V-lock release
High Quality Aluminium Alloy
Operating Temperature
-20C to +45C (-4F to +113F)
Dimensions (WxDxH)
146 x 102 x 26 mm
Weight
185 g
Mounting
Multiple mounting holes for universal camera connection
