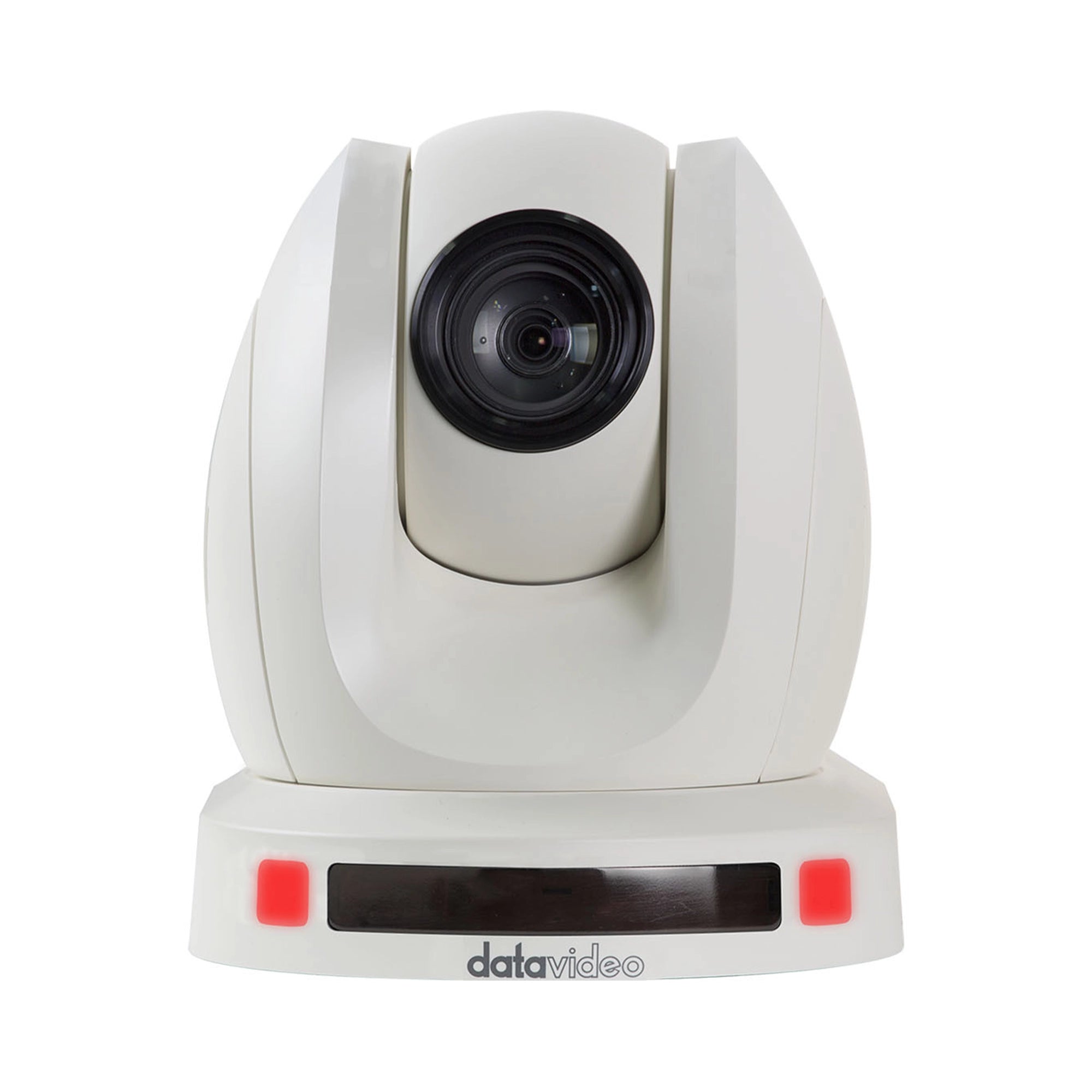

Datavideo PTC-140TW 20x HDBaseT PTZ Camera for HS-1500T or HS-1600T, White

The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

20x Optical Zoom, 10x Digital Zoom
The PTC-140T’s 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.

Single cable transmission by HDBaseT technology
Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 (“network cable”). By applying with the Receiver Box, the transmission distance is able to up to 100 meters away.

Advanced 2D/3D noise reduction function
Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.

H.264/H.265 video compression for streaming
With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

Simple multi-camera control at your fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140T cameras for any live video production.

RMC-300C can control up to 24 PTC-140T cameras
Works together with an iPad or Android tablet to control up to 24 Datavideo PTC-140T cameras.

Technical Specifications

Video format
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English, Simplified Chinese
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 340 , Tilt: +90 to -30
Panning / Tilting Speed
Pan: 0.1~60/sec
Tilt: 0.1~30/sec
Preset
255 Position
Focal Length
f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide)
Approx. 54.7 (WIDE END) / 3.3 (TELE END)
Image Compensation
Backlight Compensation
Video Output
HDBaseT (PoE) x1
RJ-45 x1
Audio Input
Line In (IP Stream Output)
Tally LED
Dual color (Red, Green)
Filter
M52.0 x 0.75 Thread with UV Protection
Protocol
VISCA, DVIP
Remote Control Interface and Transmit Distance
RS-232
Lan (RJ-45)
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format
AAC/MP3/PCM Audio compression
HD IP Interface
100M IP port(100BASE-TX); Support DVIP
Network Protocol
RTSP, RTMP
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
HS-1500T/HS-1600T/RMC-180/RMC-300C
Tripod Mount
1/4-20 UNC
Options
WM-1
Color
Black/White
Dimension (LxWxH)
156 x 182 x 186 mm
Weight
1.6 kg
Operating Temp. Range
0~40 C
Power
DC 12V 12W
What’s in the Box
1 x PTC-140T Unit
1 x IR remote controller
1 x PTC-140T Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x UV Filter
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
