Blackmagic Design Teranex Mini SDI to Audio 12G SD HD Ultra HD Supported Converter Pay With Paypal Online

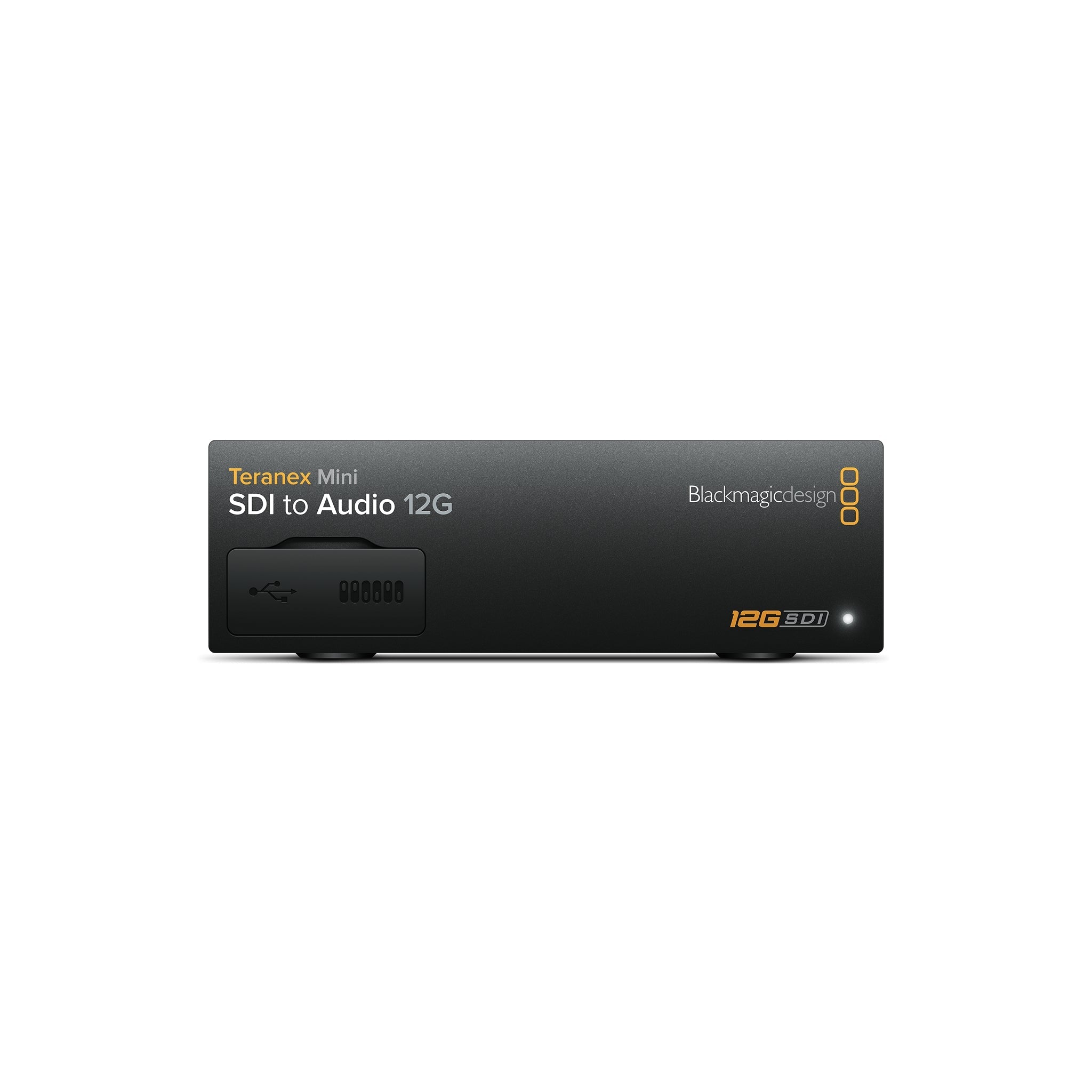

Blackmagic Design Teranex Mini SDI to Audio 12G | SD HD Ultra HD Supported Converter

Elevate your audio conversion process with the Blackmagic Design Teranex Mini SDI to Audio 12G. This cutting-edge converter is engineered to seamlessly de-embed audio from any SD, HD, or Ultra HD SDI video connection, outputting up to 4 channels of AES/EBU digital audio or 2 channels of analog audio. This versatile device is a perfect fit for professionals seeking to integrate with a myriad of audio equipment, such as audio mixers, iPods, analog broadcast decks, and audio monitors. Whether you are working in live broadcasting, post-production, or archive digitization, this converter delivers unparalleled flexibility and reliability.

The Teranex Mini SDI to Audio 12G supports an impressive range of formats, including 525/29.97 NTSC, 625/25 PAL for SD; 1280 x 720 and 1920 x 1080 for HD; and up to 4096 x 2160 for 4K, making it future-proof and adaptable to various production needs. The device automatically switches between all popular SD, HD, 3G, 6G, and 12G-SDI video formats and supports advanced multi-rate processing, ensuring you can handle any video and audio signal that comes your way. And with support for common television standards such as SMPTE and ITU-R, your broadcast quality remains top-notch.

Featuring robust connectivity options, the Teranex Mini offers balanced analog, optical, and digital outputs, granting you the flexibility to connect with any audio equipment. The unit also boasts a USB and Ethernet interface for easy updates and configuration, as well as re-clocking capability to ensure the highest quality of audio signal. Designed with professional environments in mind, this device offers convenience without compromising on performance. Experience the superior quality and reliability that only Blackmagic Design can deliver.

Key Features

• De-embed audio from SD, HD, or Ultra HD SDI video connections
• Output 2 channels of analog audio to balanced XLR, optical, or HiFi RCA
• Output up to 4 channels of AES/EBU digital audio
• Supports SD, HD, 2K, and 4K video formats
• Automatic switching between standard definition, high definition, and ultra-high definition
• USB and Ethernet interfaces for easy updates and configurations
• Re-clocking capability for enhanced audio signal quality
• Compatible with a wide range of audio equipment

Specifications

• SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto-switching
• SDI Video Output: 1 x 12G-SDI loop output
• AES/EBU Audio Output: 4 channels professional 110 ohm balanced digital audio via XLR connectors
• Analog Audio Output: 2 channels professional balanced analog audio via XLR and RCA connectors
• Optical Audio Output: S/PDIF Signal with TOSLINK Connector
• Multi Rate Support: Automatic switching between SD/HD/2K and 4K
• SD Format Support: 525/29.97 NTSC, 625/25 PAL
• HD Format Support: Up to 1920 x 1080p60
• 2K Format Support: Up to 2048 x 1080p25
• 4K Format Support: Up to 4096 x 2160p60
• SDI Compliance: SMPTE and ITU-R standards
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Audio Sampling: 48kHz, 24-bit
• SDI Color Precision: YUV 4:2:2, RGB 4:4:4
• SDI Color Space: REC 601, REC 709
• Software Control: Mac OS X and Windows via USB and Ethernet
• Power Supply: 1 x built-in international AC power supply with IEC C14 inlet
• Power Over Ethernet: 48V DC using PoE+
• Power Consumption: 15 Watts
• Operational Voltage: 90 – 240V AC
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Teranex Mini – SDI to Audio 12G
• Software SD Card
