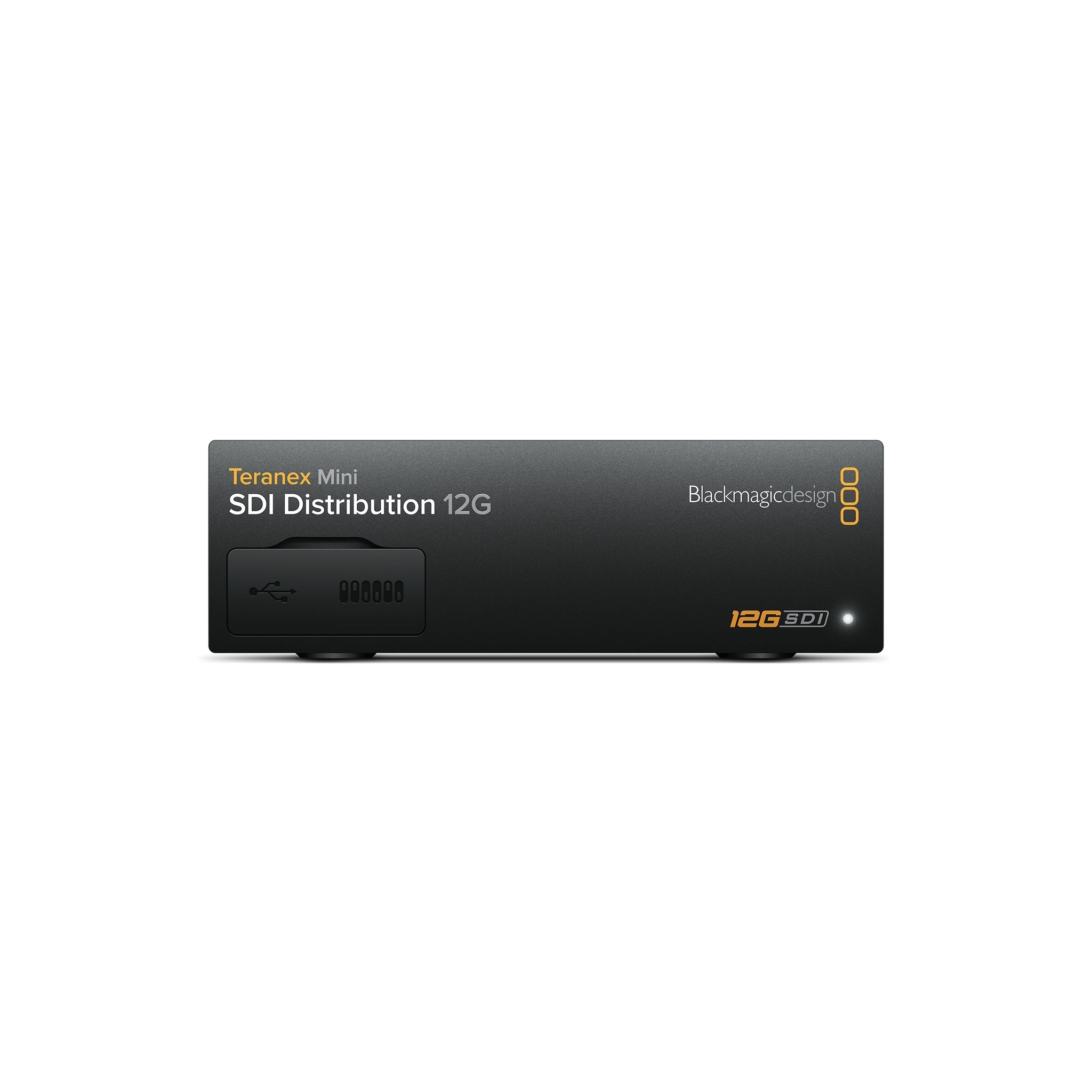

Blackmagic Design Teranex Mini SDI Distribution 12G

Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

Technical Specifications

Connections
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Re-Clocking
Yes
Standards
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 59.94, 60
1080i50, 59.94, 60
1080PsF23.98, 24
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K Format Support
1080PsF23.98, 24, 125
1080p23.98, 24, 25
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Compliance
SMPTE 259M, 292M, 296M, 372M, 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ST 2081 & ST 2082
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
