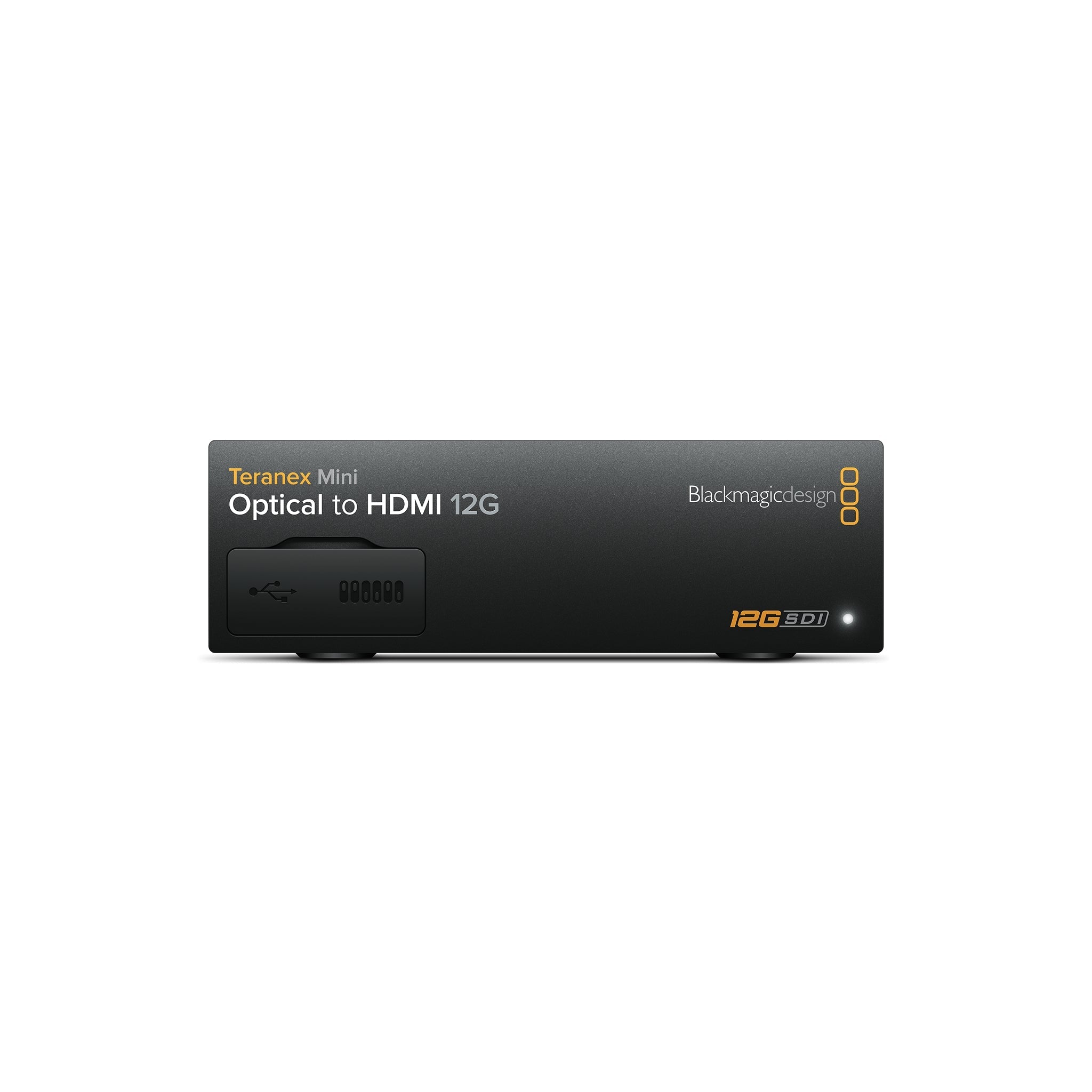

Blackmagic Design Teranex Mini Optical to HDMI 12G SD HD Ultra HD Supported Converter Newest

Blackmagic Design Teranex Mini Optical to HDMI 12G | SD HD Ultra HD Supported Converter

The Blackmagic Design Teranex Mini Optical to HDMI 12G converter is an essential tool for professionals in the broadcast and video production industry. This versatile device allows you to convert from 12G optical fiber and 12G-SDI to HDMI, making it perfect for using HDMI televisions as SDI broadcast monitors or connecting to video projectors. Its comprehensive format support includes SD, HD, 6G, and 12G-SDI rates, ensuring compatibility with various video formats and resolutions. Additionally, the built-in down converter ensures your HDMI monitor selects the best format it can support, providing a seamless viewing experience.

One of the standout features of the Teranex Mini Optical to HDMI 12G is its audio capabilities. The converter can de-embed audio to balanced analog or AES/EBU formats, and it supports timecode output, which is crucial for synchronization in professional settings. The device also boasts robust connectivity options, including USB and Ethernet for updates and configuration, and can auto-detect SD, HD, or 12G-SDI formats. Its ability to handle a wide range of environmental conditions makes it highly reliable for both studio and field applications.

Whether you are working in a broadcast studio, a live event setup, or a post-production environment, the Blackmagic Design Teranex Mini Optical to HDMI 12G offers the performance and flexibility needed to handle complex video conversions with ease. The device’s high efficiency, thanks to its low power consumption and power over Ethernet capabilities, coupled with software control options available for both Mac OS X and Windows, ensures that it fits seamlessly into your existing workflow.

Key Features

• Converts 12G optical fiber and 12G-SDI to HDMI
• Supports SD, HD, 6G, and 12G-SDI rates
• Built-in down converter for Ultra HD formats
• Audio de-embedding to balanced analog or AES/EBU formats
• Timecode output support
• Auto-detection of video formats (SD, HD, 12G-SDI)
• USB and Ethernet for software updates and configuration
• Professional audio and video outputs via XLR and HDMI
• Power over Ethernet (PoE+) capability
• Robust environmental specifications

Specifications

• Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching
• Optical Fiber Video Input: LC connector, 1310 nm wavelength, single mode
• Video Loop Through: 1 x 12G-SDI loop output
• Video Output: 1 x HDMI 2.0 type A connector with support for 2160p60
• Audio Output: 2 channels balanced analog audio via XLR connectors
• Audio Output: 4 channels balanced digital audio via XLR connectors
• Multi-rate support: SD, HD or 12G-SDI
• Update and Configuration: USB and Ethernet
• Re-clocking: Yes
• SD Format: 525/29.97 NTSC, 625/25 PAL
• HD Format: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
• 2K Format: 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25
• 4K Format: 3840 x 2160p23.98, 3840 x 2160p24, etc.
• Power Supply: 1 x built-in international AC power supply with IEC C14 inlet, 90-240V AC
• Operating Temperature: 0 deg to 40 deg C (32 deg to 104 deg F)
• Storage Temperature: -20 deg to 60 deg C (-4 deg to 140 deg F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Teranex Mini – Optical to HDMI 12G
• Software SD Card
