Blackmagic Design Teranex Mini HDMI to SDI 12G SD HD Ultra HD Supported Converter Low Cost Online

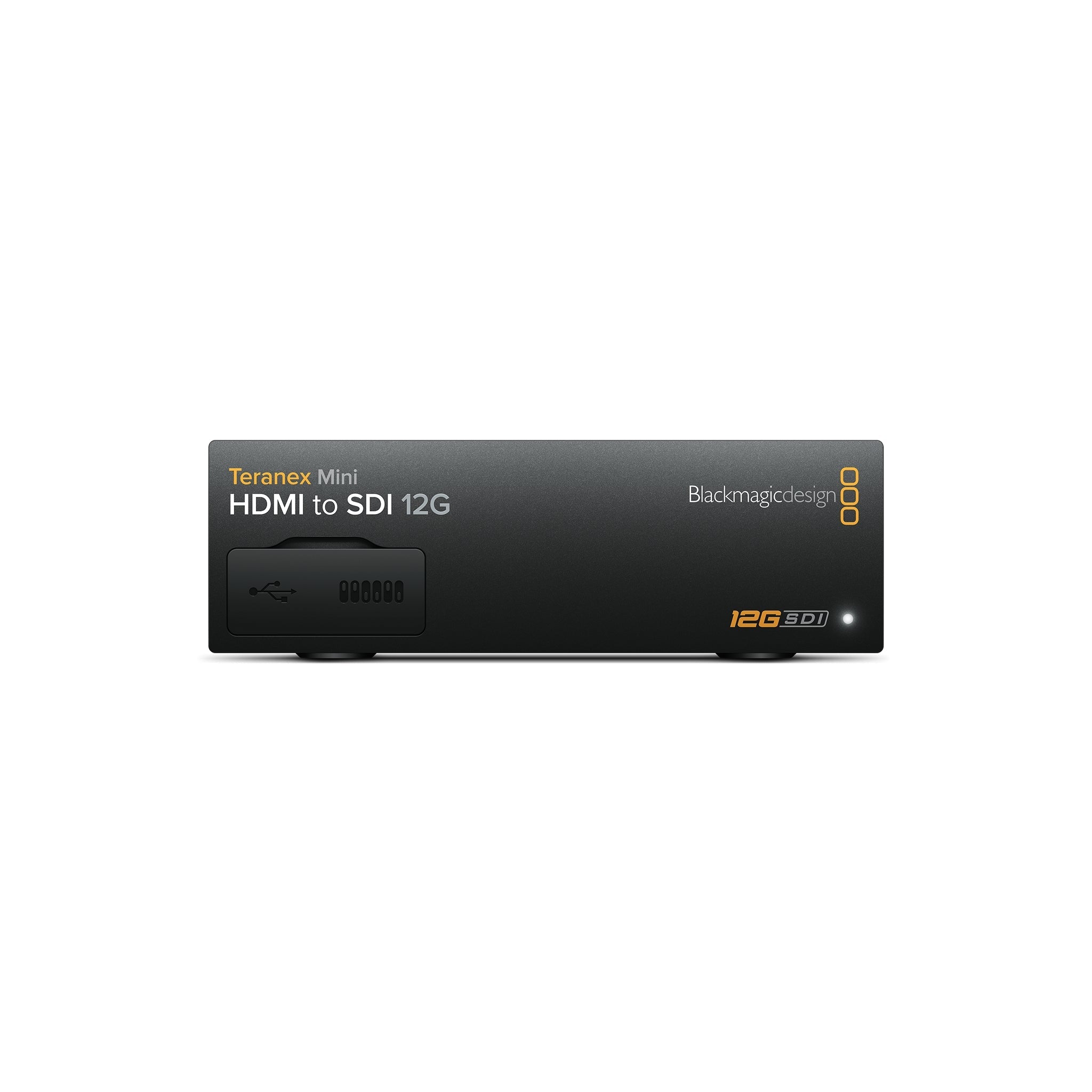

Blackmagic Design Teranex Mini HDMI to SDI 12G | SD HD Ultra HD Supported Converter

The Blackmagic Design Teranex Mini HDMI to SDI 12G is a sophisticated converter offering seamless transition from HDMI to 12G-SDI. Ideal for professionals working with all video formats, this converter supports SD, HD, 6G, and 12G-SDI rates. With an integrated up-converter, it effortlessly transforms HD into Ultra HD for impeccable video quality, making it perfect for filmmakers, broadcasters, and digital content creators. Whether you are using consumer cameras with HDMI outputs or computers with HDMI connections, the Teranex Mini is designed to enhance your workflow with precision and efficiency.

One of its standout features is the ability to embed audio from both balanced analog and AES/EBU sources, along with timecode input. This makes it an invaluable tool for synchronizing video and audio capture. The device is built to automatically detect and match SD, HD, and 12G-SDI HDMI video inputs, ensuring your content is always broadcast-ready. The Teranex Mini also supports a wide range of video formats and resolutions, including 4K at up to 60 frames per second, enabling versatile usage scenarios for high-quality video production.

Additionally, the Teranex Mini boasts multiple configuration options via USB or Ethernet, along with re-clocking capabilities to ensure pristine video clarity. Its robust and compact design makes it a portable yet powerful addition to any production setup, delivering professional-grade results every time.

Key Features

• Convert HDMI to 12G-SDI with ease
• Supports all video formats, including SD, HD, 6G, and 12G-SDI
• Up converter included for HD to Ultra HD conversion
• Embed audio from balanced analog and AES/EBU
• Timecode input for synchronized video and audio
• Automatic format detection and matching
• USB and Ethernet configuration options
• Re-clocking for clear, sharp video output

Specifications

• SDI Video Output: Matches input
• XLR Audio Input: 2 channels, balanced analog
• HDMI 2.0: 1 x HDMI type A connector
• Multi Rate Support: Automatic SD/HD/2K/4K
• SD Format Support: 525/29.97 NTSC, 625/25 PAL
• HD Format Support: Various resolutions up to 1920 x 1080p60
• 4K Format Support: Up to 4096 x 2160p60
• Power Supply: 90 – 240V AC or PoE
• Power Consumption: 15 Watts
• Software Control: Mac OS X and Windows
• Environmental Specifications: Operating Temperature: 32°F to 104°F, Storage Temperature: -4°F to 140°F, Relative Humidity: 0%-90% non-condensing

Package Contents

• Teranex Mini – HDMI to SDI 12G
• Software SD Card
• User Manual
