Blackmagic Design Teranex Mini HDMI to Optical 12G SD HD Ultra HD Supported Converter Discount Best

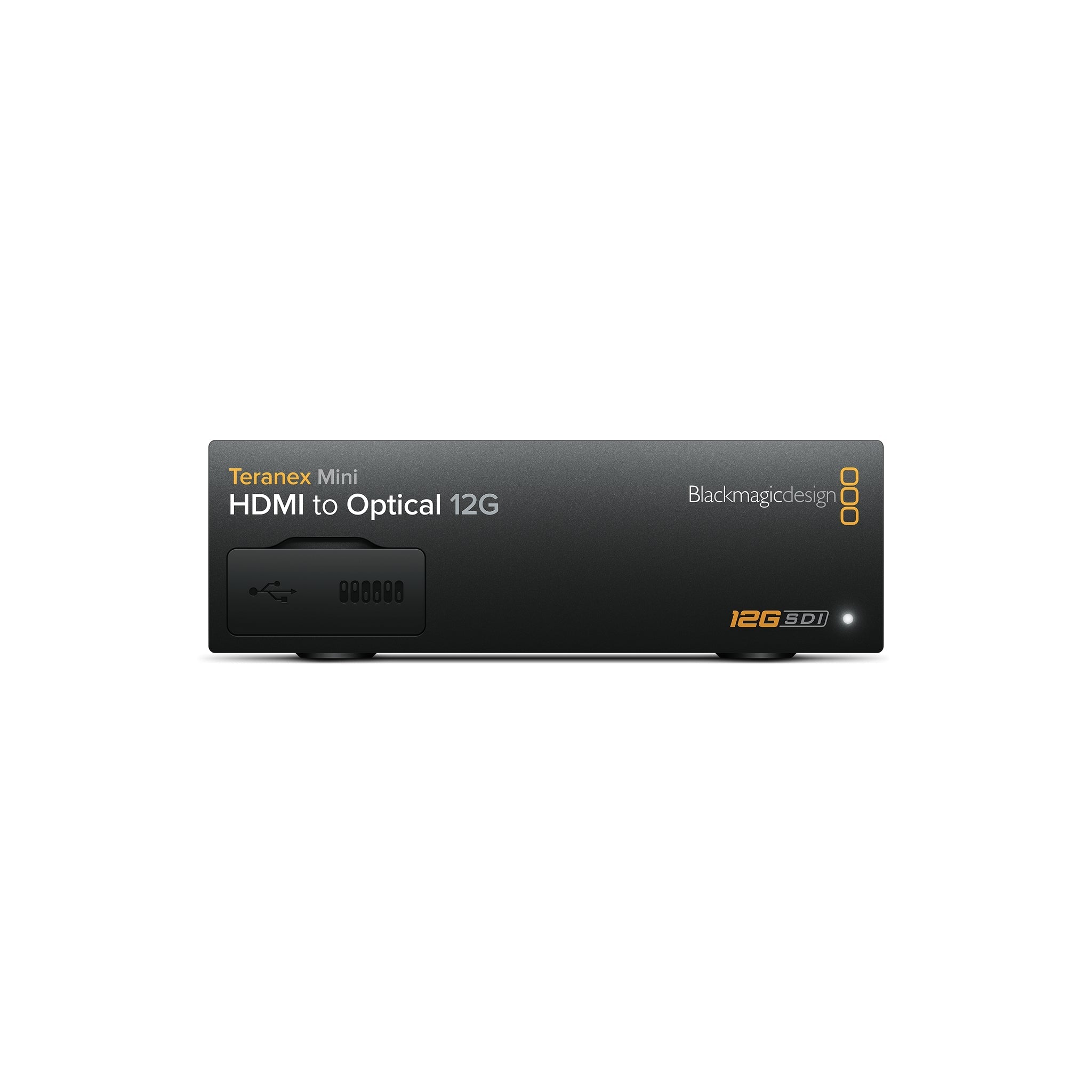

Blackmagic Design Teranex Mini HDMI to Optical 12G | SD HD Ultra HD Supported Converter

The Blackmagic Design Teranex Mini HDMI to Optical 12G converter is an essential tool for modern video production professionals. Offering unparalleled versatility, this device effortlessly converts HDMI signals to 12G optical fiber and 12G-SDI formats. Designed to handle all video formats, including SD, HD, 6G, and 12G-SDI rates, it includes an up converter for converting HD to Ultra HD. Whether you’re aiming to upgrade the performance of consumer-grade HDMI cameras or add SDI outputs to your computer setups, this converter is your go-to device.

This device is a critical component for enhancing operational capabilities in both studio and on-field environments. With professional features like balanced analog audio embedding, AES/EBU audio connections, and timecode input, the Teranex Mini ensures you capture every detail with high precision and quality. From video editors and broadcast engineers to content creators, the Teranex Mini provides the robustness and reliability needed for any video production task. Given its ability to work across a multitude of formats and resolutions, including 4K, this device is future-proof, accommodating both current and emerging technologies.

Key Features

• Converts HDMI to 12G optical fiber and 12G-SDI
• Supports SD, HD, 6G, and 12G-SDI formats
• Up converter for converting HD to Ultra HD
• Embed audio from balanced analog or AES/EBU
• Timecode input via XLR connectors
• Automatic switching between SD, HD, 2K, and 4K video
• USB and Ethernet for updates and configuration
• Re-clocking for stabilized video quality

Specifications

• HDMI: 1 x HDMI 2.0 type A connector supporting 2160p60
• Optical Fiber Connection: LC connector, 1310nm wavelength, single mode
• Video Output: SD, HD, and 12G-SDI HDMI video input matching
• Audio Input: 2 channels professional balanced analog via XLR connections, 4 channels professional balanced digital audio via XLR
• Supported Formats: SD (525/29.97 NTSC, 625/25 PAL), HD (up to 1920x1080p60), 2K (2048×1080), and 4K (4096×2160)
• SDI Compliance: SMPTE 292M, 259M, 296M, 372M, 424M-B, 425M, 297M
• Audio Sampling: 48 kHz, 24-bit
• Color Precision: YUV 4:2:2 and RGB 4:4:4
• Power Supply: Built-in international AC power supply (90 – 240V AC)
• Power Consumption: 15 Watts
• Environmental Specs: Operating Temperature: 0 deg to 40 deg C (32 deg to 104 deg F)

Package Contents

• Teranex Mini – HDMI to Optical 12G
• Software SD Card
