Blackmagic Design DeckLink Micro Recorder for SD/HD Formats

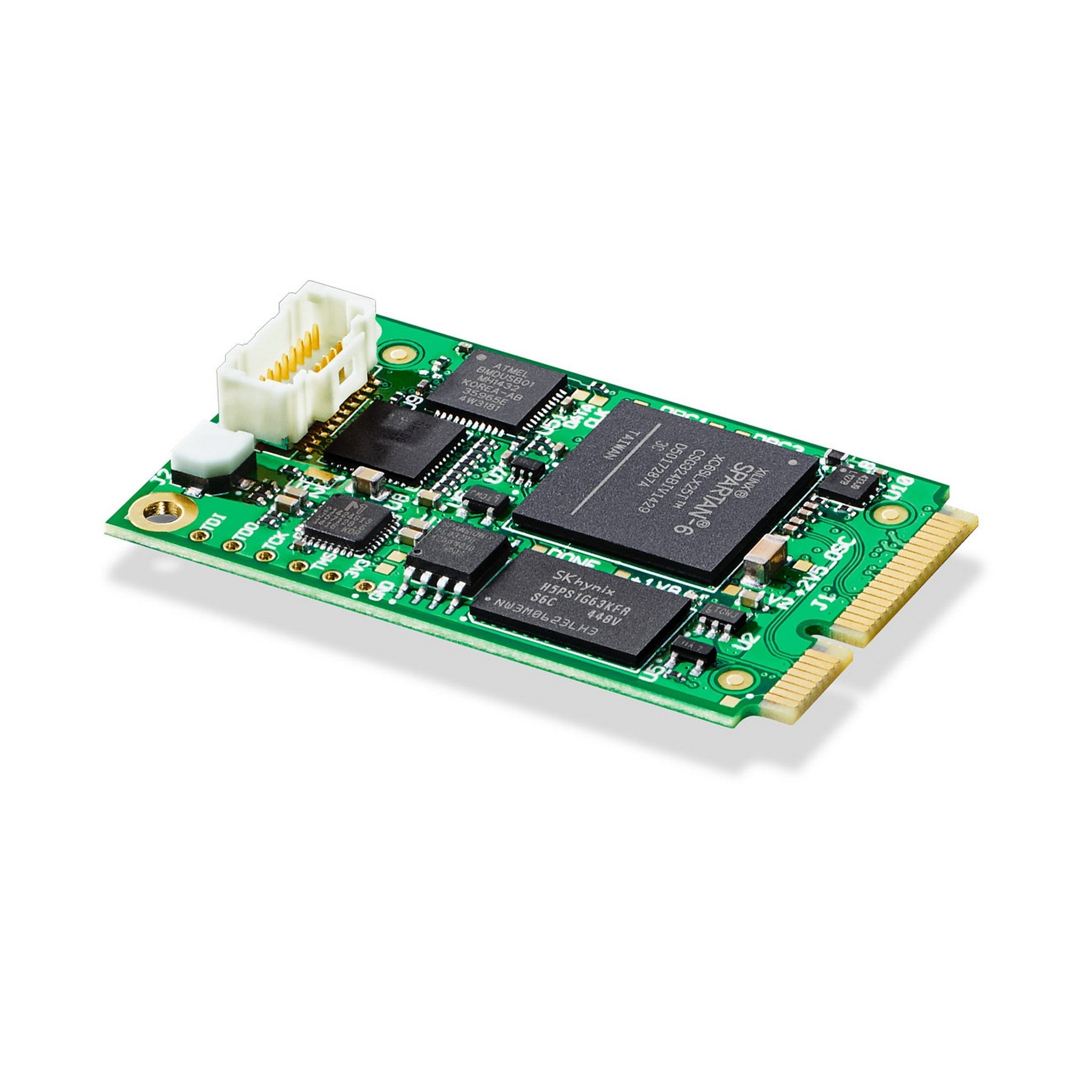

The Blackmagic Design DeckLink Micro Recorder is a state-of-the-art, low-latency miniature video capture card tailored for professionals seeking exceptional video capture quality. This advanced solution supports all SD and HD formats up to 1080p30, making it a versatile asset for live broadcasting, post-production, and content creation. Its compact form factor ensures it integrates seamlessly into any setup, conserving valuable workspace.

Designed to work with computers featuring a 1-lane Gen 1 Mini PCIe slot, the DeckLink Micro Recorder simplifies the addition of SDI or HDMI video inputs via built-in Hirose and Molex connectors. This flexibility allows users to connect various video sources, ensuring adaptability to different production scenarios. With its professional-grade specifications, this recorder guarantees superior video quality and minimal latency, meeting the high standards demanded by modern audiences.

The DeckLink Micro Recorder is the go-to tool for filmmakers, streamers, and video professionals. Whether capturing high-resolution footage or live streaming events, its versatility and exceptional performance make it an indispensable component in the video production industry.

Key Features

• Low-latency video capture for SD and HD formats up to 1080p30
• Compact design ideal for tight spaces and portable setups
• Compatible with 1-lane Gen 1 Mini PCIe slots
• Built-in Hirose and Molex connectors for flexible input options
• Professional-grade video quality with minimal latency

Specifications

• Connections: PCIx1 Gen 1 PCI Express Mini Card Electromechanical Specification
• SDI Video Inputs: 2 x 10-bit 4:2:2 SD/HD/3G-SDI
• SDI Video Output: 1 x 10-bit 4:2:2 SD/HD/3G-SDI
• Analog Video Inputs: None
• Analog Audio Inputs: None
• Analog Audio Outputs: None
• Audio Inputs: Embedded SDI audio
• Audio Outputs: None
• Power Requirements: 12V DC power supply, 2.5mm barrel connector
• Power Consumption: 3 W max
• SD Format Support: 525i/59.94 NTSC, 625i/50 PAL
• HD Format Support: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• Video Sampling: 4:2:2
• Color Precision: 8, 10-bit YUV 4:2:2
• Compliance: SMPTE 259M, 292M, 296M, and HDMI
• Weight: 0.35 lbs
• Dimensions: 4.2″ x 2.8″ x 1.0″
• Physical Specifications: 1.18″ Wide x 2.00″ Length
• Operating Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10, 64-bit, Windows 11, Linux
• Environmental Specifications:
• Operating Temperature: -25°C to 55°C (-13°F to 131°F)
• Storage Temperature: -40°C to 75°C (-40°F to 167°F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• DeckLink Micro Recorder

Warranty: 3 Year Limited Manufacturer’s Warranty
