Aurora DXW-2E-RX2-B 4K UHD HDMI HDBaseT Wall Plate Receiver with Ethernet Black

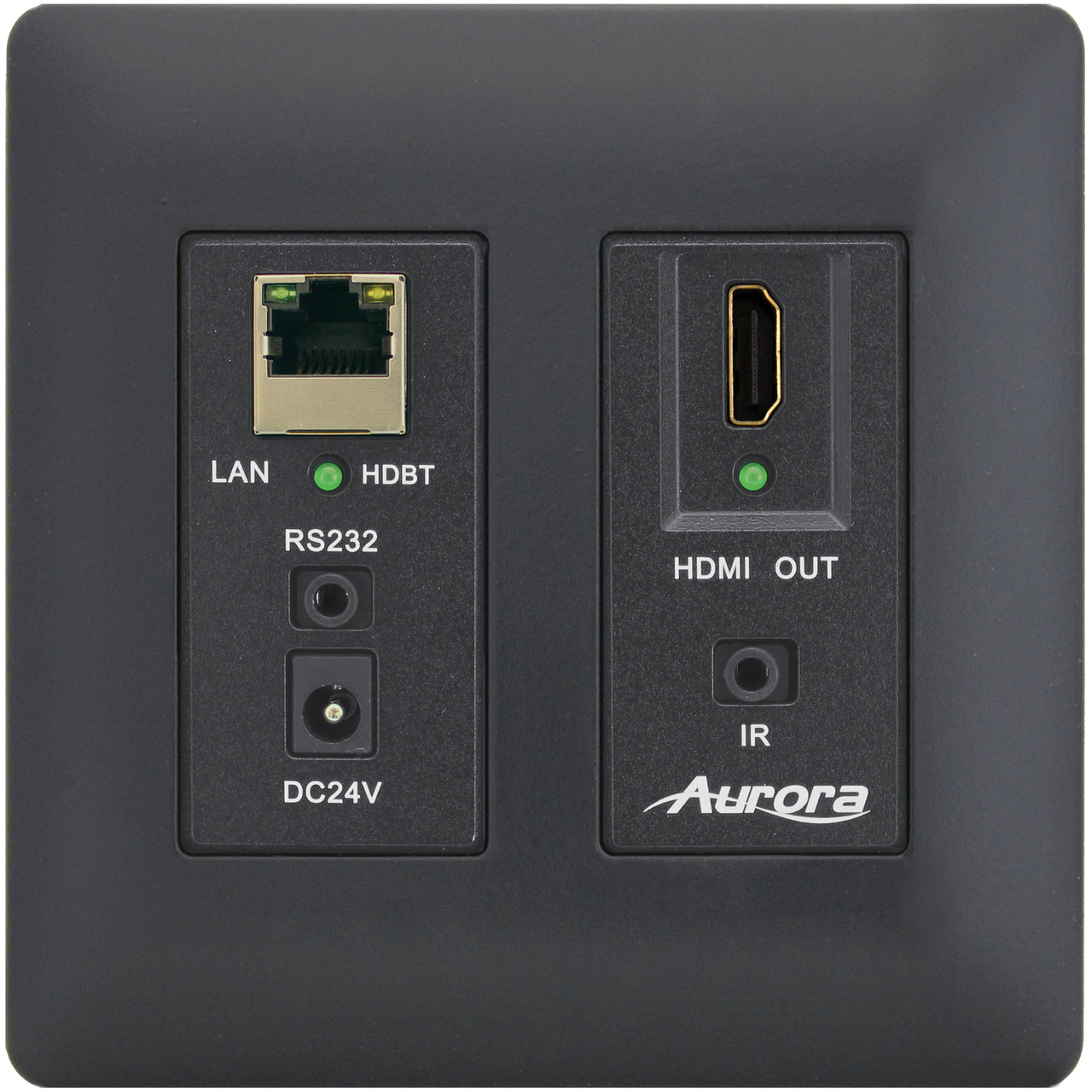

The DXW-2E-RX2 is a 2 gang Decora style HDBaseT receiver wall plate with HDMI Output, Ethernet, RS-232, and IR. Using a single CAT 5e/6/6A cable the signals can be extended up to 330 ft. Power can be received remotely or generated locally and sent to transmitter unit. To simplify even further the unit can be powered from the front or rear and is compatible with PoH standards. The DXW-2E-RX2 is perfect for mounting behind displays or in any area that requires a neat mounted solution.

Key Features

• 1 HDMI Output
• HDCP Compliant
• 10/100 LAN
• RS-232 up to 115k baud
• IR bi-directional
• HDBaseT 330ft Extension
• Remotely or Locally Powered
• Fits in Standard 2 Gang Outlet Box with Decora style wall plate
• Low depth for floor and table boxes

Technical Specifications

Video
HDMI Compliance: HDMI 3D
HDCP Compliant: Yes
Distance: 330ft over one CAT 5e/6/7 cable (1080p 60Hz 48bit)
Max Resolution: 4K x 2K
Color Depth: 48bit
Connectors
Digital Video: (1) HDMI output
Control
IR: IR pass through for controlling remote devices
LAN: 10/100 RJ-45
Serial: Capable of being controlled remotely through compatible transmitter
Physical & Power
Dimensions: 2 Gang 3.728″ x 4.331″ x 1.33″ Note: Wall box portion depth 1.02″
Weight: 1lbs
Power: 24VDC & PoH
