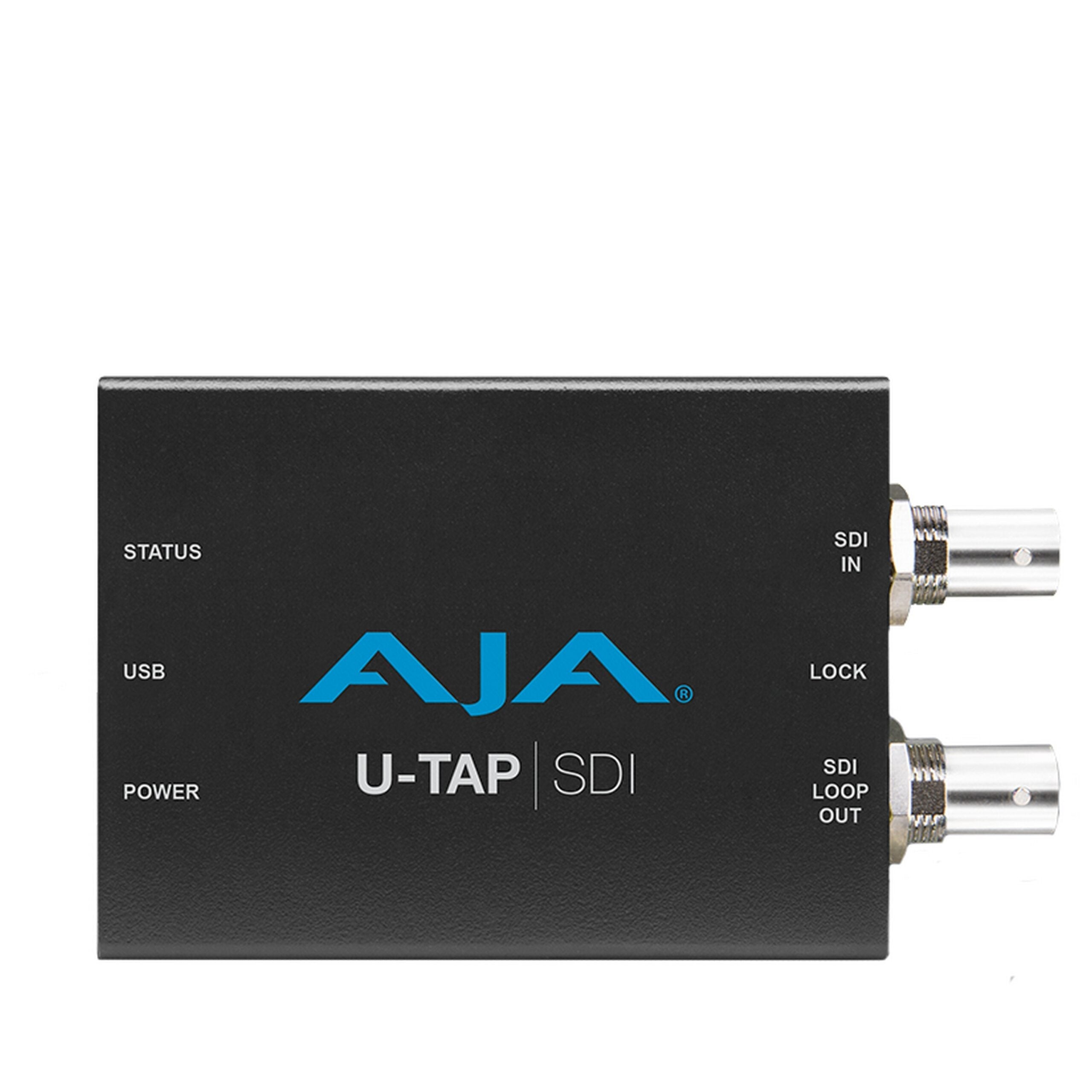

AJA U-TAP-SDI HD/SD USB 3.0 Capture Device for Mac/Windows/Linux

The U-TAP 3G-SDI USB 3.0 (USB 3.2, Gen 1) capture devices brings professional connectivity and high quality video capture to your laptop or workstation. U-TAP SDI is bus powered with the ability to simply and easily bring in video across 3G-SDI for use within a wide range of software without any drivers to install, as It’s supported directly in macOS 11, Windows and Linux. U-TAP SDI offers easy, cost effective and portable solutions for plug and play capture that is compatible with Windows, macOS and Linux operating systems and a broad range of creative applications. From video conferencing, streaming, social media, gaming and more, U-TAP SDI offers powerful functionality without requiring any third party driver software.

Key Features

• Compact and Portable
• 3G-SDI, SMPTE-259/292/424 Looping Input
• Bus Powered through USB 3.0 (USB 3.2, Gen 1) interface to computer
• Configurable behavior upon loss of input signal
• Embedded Stereo Audio support
• Supported by OS on macOS, Windows and Linux
• 3 year warranty

Technical Specifications

Video Formats
Video (SDI)
(HD) 1920 x 1080p 50, 59.94, 60 (Level A or B-DL)
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
YCbCr, 4:2:2, 10-bit
Scaled (USB), Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p
1440 x 1080p
1280 x 720p
1024 x 576p
960 x 540p
856 x 480p
800 x 600p
768 x 576p
720 x 576p
720 x 480p
640 x 480p
640 x 360p
432 x 240p
352 x 288p
320 x 240p
176 x 144p
Video Input Digital
3G-SDI, SMPTE-259/292/424, YCbCr 4:2:2 (1x BNC)
Video Loop Output
1x 3G-SDI (1x BNC)
Audio Input Digital
2-channel, 24-bIt’sDI embedded audio, 48 kHz sample rate
Capture Video
16-bits/pixel, YUV (input video will be truncated as required)
Capture Audio
2-channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)
Host Interface
USB 3.0/USB 2.0 UVC/UAC compliant
Size (w x d x h)
4.1″ x 2.4″ x 1.0″ (104.14 x 60.96 x 25.4 mm)
Weight
0.3 lb (0.2 kg)
Power
5V USB bus powered; 4W max
Environment
Safe Operating Temperature
0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF)
-40 to 60 C (-40 to 140 F)
Operating Relative Humidity
10-90% noncondensing
Operating Altitude
<3,000 meters (<10,000 feet)
