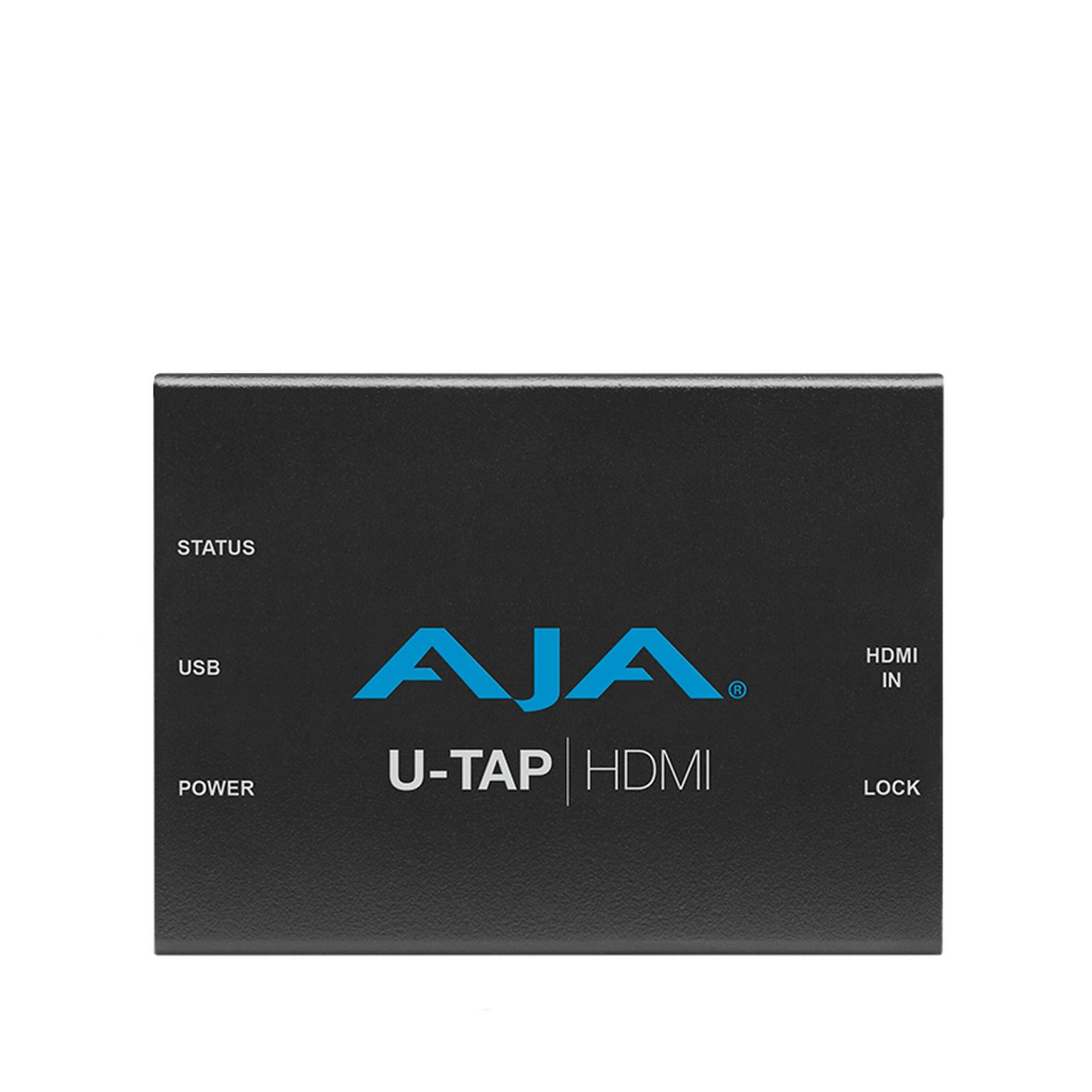

AJA U-TAP-HDMI HD/SD USB 3.0 Capture Device for Mac/Windows/Linux with (Used) Pre Order For Sale

AJA U-TAP-HDMI HD/SD USB 3.0 Capture Device for Mac/Windows/Linux with (Used)

Great: Minimal signs of use.

The U-TAP HDMI USB 3.0 (USB 3.2, Gen 1) capture devices brings professional connectivity and high quality video capture to your laptop or workstation. U-TAP HDMI is bus powered with the ability to simply and easily bring in video across HDMI for use within a wide range of software without any drivers to install, as it’s supported directly in macOS 11, Windows and Linux. U-TAP HDMI offers easy, cost effective and portable solutions for plug and play capture that is compatible with Windows, macOS and Linux operating systems and a broad range of creative applications. From video conferencing, streaming, social media, gaming and more, U-TAP HDMI offers powerful functionality without requiring any third party driver software. U-TAP HDMI is smaller than a smartphone, with USB connectivity that provides a quick and easy way to connect HDMI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source. U-TAP HDMI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects.

Key Features

• HD/SD Capture up to 1080 60p over USB
• 1x HDMI 1.4a with 2-channel embedded audio
• 1x USB 3.0 (USB 3.2, Gen 1) connector
• YCbCr 4:2:2 10-bit workflows supported
• RGB 4:4:4 / YCbCr 4:4:4 10/12-bit (raster / frame rate dependent)
• HD/SD and scaled (USB) raster support
• Configurable behavior upon loss of input signal
• UVC/UAC capture, no third-party driver required
• Compact, silent and pocketable
• Bus-powered, no power adapter required
• macOS, Windows and Linux supported
• Universal application compatibility
• Three year warranty

Technical Specifications

Video Formats
Video (HDMI)
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625p 25
(SD) 625i 50
(SD) 525p 29.97
(SD) 525i 59.94
YCbCr 4:2:2 10-bit*
YCbCr 4:4:4 8/10/12-bit*
RGB 4:4:4 8/10/12-bit*
Computer (HDMI), up to 60 Hz max for all formats
1920 x 1080p
1680 x 1050p
1600 x 1200p
1600 x 1024p
1280 x 1024p
1280 x 960p
1280 x 768p
1024 x 768p
800 x 600p
640 x 480p
Scaled (USB), Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p
1440 x 1080p
1280 x 720p
1024 x 576p
960 x 540p
856 x 480p
800 x 600p
768 x 576p
720 x 576p
720 x 480p
640 x 480p
640 x 360p
432 x 240p
352 x 288p
320 x 240p
176 x 144p
Video Input Digital
HDMI v1.4a, 24, 30 or 36-bits/pixel, RGB or YUV
Audio Input Digital
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate
Capture Video
16-bits/pixel, YUV (input video will be truncated as required)
Capture Audio
2-channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)
Host Interface
USB 3.0/USB 2.0 UVC/UAC compliant
Size (w x d x h)
3.3″ x 2.4″ x 1.0″ (83.82 x 60.96 x 25.4 mm)
Weight
0.3 lb (0.2 kg)
Power
5V USB bus powered; 3.5W max
Environment
Safe Operating Temperature
0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF)
-40 to 60 C (-40 to 140 F)
Operating Relative Humidity
10-90% noncondensing
Operating Altitude
<3,000 meters (<10,000 feet)
