2x2A Arduino Motor Shield Twin Shop Offer Cheap Online

Name: 2x2A Arduino Motor Shield Twin Shop Offer Cheap Online
Brand: Discount Zone
SKU: 2x2A Arduino Motor Shield Twin Shop Offer Cheap Online-26542
Price: 14.84 USD
Availability: InStock
Rating: 4.3 (512 reviews)

Original price was: $16.67.Current price is: $14.84.

Free Shipping On Orders Over $50.

SKU: 2x2A Arduino Motor Shield Twin Shop Offer Cheap Online-26542 Category: Discount Zone

Description
Reviews (0)

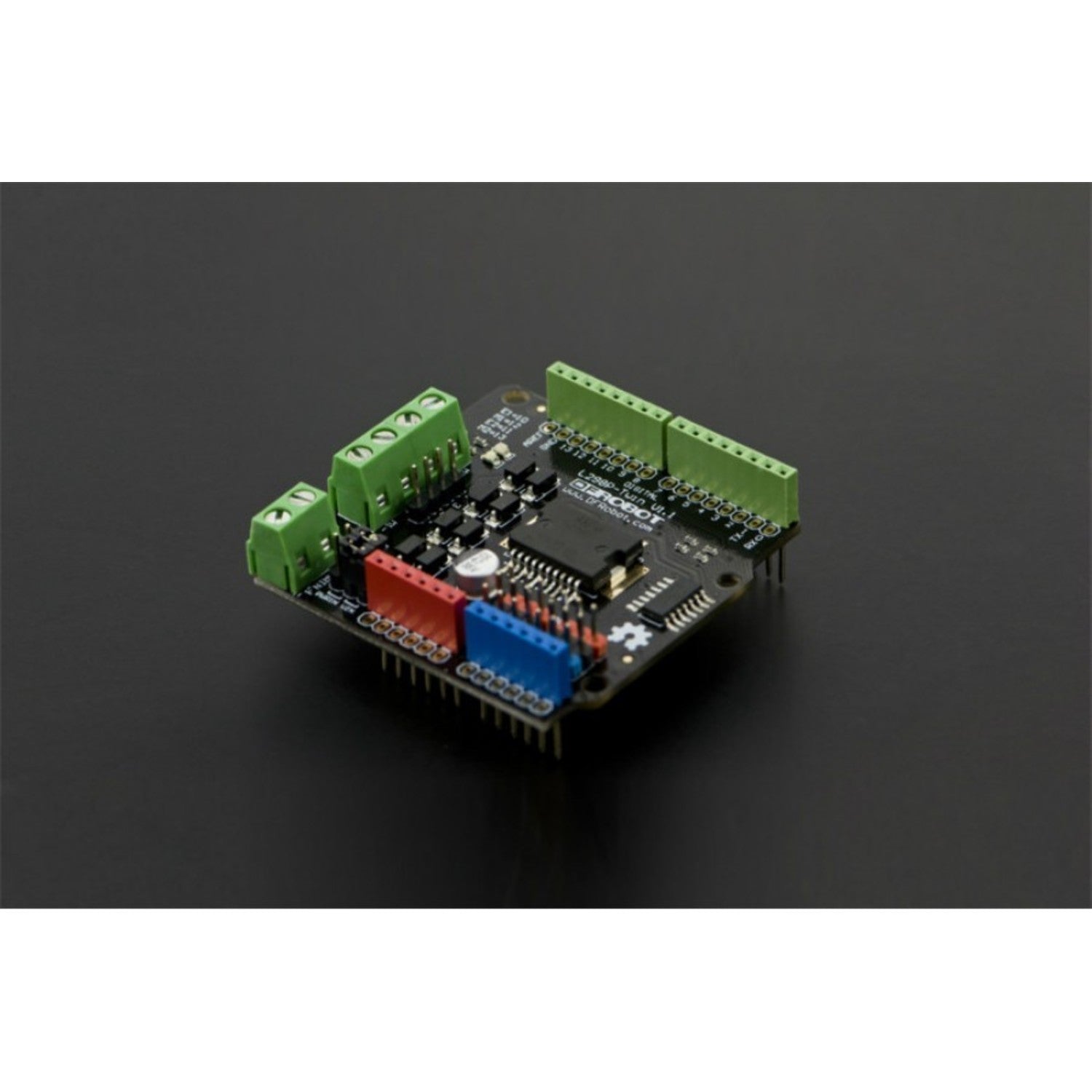

Arduino product family is a great learning platform for electronics, programming and robotics. But most projects at some point require mobility. This motor arduino shield allows Arduino to drive two channel DC motors. It uses a L298P chip which deliveries output current up to 2A each channel. Stack up this shield on your controller and drive motors with higher power requirements. Depending on the motor of choice, you can make it fast or handle a higher payload. This Arduino Compatible Motor Shield (2A) uses L298P chip which allow to drive two 7-12V DC motors with maximum 2A current. This shield can be directly mounted onto standard Arduino Uno R3 e and Arduino Mega. Speed control is achieved through conventional PWM which can be obtained from Arduino’s PWM output Pin 10 and 11. The enable/disable function of the motor control is signalled by Arduino Digital Pin 12 and 13. The Motor shield can be powered directly from Arduino or from external power source. It is strongly encouraged to use external power supply to power the motor shield.

Compatible with:

Arduino UNO
Arduino UNO R3
Arduino Mega 1280/2560

SPECIFICATIONS

Motor Driven Voltage: 4.8V to 35V
Output Current: up to 2A/channel
Total Power Dissipation: 25W(T=75°C)
Driven Structure: Dual full-bridge driver
Driven Power Port: External power terminal, or VIN from Arduino
Driven Output Port: 2 channel screw terminals, or male PIN headers
Control Port: 4 TTL Compatible digital signals (Digital 10-13)
Operation Temperature: -25°C to 130°C
Shield Size: 56x57mm(2.20×2.24″)

DOCUMENTS

Wiki (2A Motor Shield For Arduino Twin) )
Schemtaic
Datasheet

SHIPPING LIST

2A Motor Shield For Arduino x1
