2.8 TFT LCD with Cap Touch Breakout Board w/MicroSD Socket Sale Cheapest Pice

Name: 2.8 TFT LCD with Cap Touch Breakout Board w/MicroSD Socket Sale Cheapest Pice
Brand: Computer Components
SKU: 2.8 TFT LCD with Cap Touch Breakout Board w/MicroSD Socket Sale Cheapest Pice-26538
Price: 33.07 USD
Availability: InStock
Rating: 5 (689 reviews)

Original price was: $45.30.Current price is: $33.07.

Free Shipping On Orders Over $50.

SKU: 2.8 TFT LCD with Cap Touch Breakout Board w/MicroSD Socket Sale Cheapest Pice-26538 Categories: Computer Components, Computers & Accessories

Description
Reviews (0)

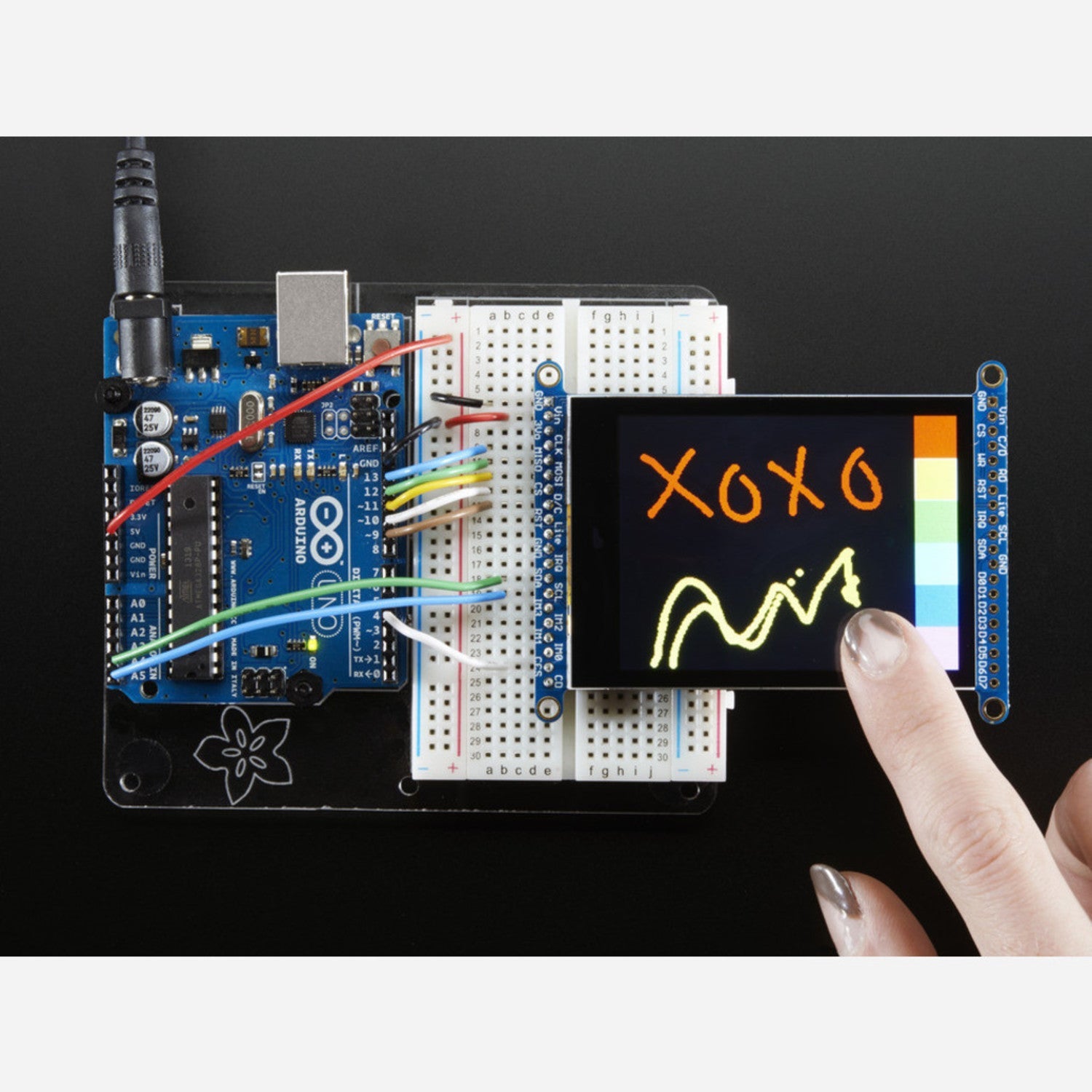

Add some jazz & pizazz to your project with a color capactive touchscreen LCD. This TFT display is big (2.8″ diagonal) bright (4 white-LED backlight) and colorful! 240×320 pixels with innavidual RGB pixel control, this has way more resolution than a black and white 128×64 display. As a bonus, this display has a capacitive single-touch touchscreen attached to it already, so you can detect finger presses anywhere on the screen. (We also have a resistive touchscreen version of this display breakout)

This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode. In addition, 2 I2C pins are required for the touch screen controller.

We wrapped up this display into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you’re going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images. (The microSD card not included, but any will work)

Of course, we wouldn’t just leave you with a datasheet and a “good luck!”. For 8-bit interface fans we’ve written a full open source graphics library that can draw pixels, lines, rectangles, circles, text, and more. For SPI users, we have a library as well, its separate from the 8-bit library since both versions are heavily optimized. We also have an interfacing library for the capacitive touch screen

Follow our step by step guide for wiring, code and drawing. You’ll be running in 15 minutes

If you are using an Arduino-shaped microcontroller, check out our TFT shield version of this same display
