2.4GHz Terminal Antenna, I-PEX MHF I (U.FL), 250mm RG-178 Cheap Countdown Package

Name: 2.4GHz Terminal Antenna, I-PEX MHF I (U.FL), 250mm RG-178 Cheap Countdown Package
Brand: Computers & Accessories
SKU: 2.4GHz Terminal Antenna, I-PEX MHF I (U.FL), 250mm RG-178 Cheap Countdown Package-26516
Price: 11.97 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Original price was: $15.55.Current price is: $11.97.

Free Shipping On Orders Over $50.

SKU: 2.4GHz Terminal Antenna, I-PEX MHF I (U.FL), 250mm RG-178 Cheap Countdown Package-26516 Categories: Computers & Accessories, Networking Products

Description
Reviews (0)

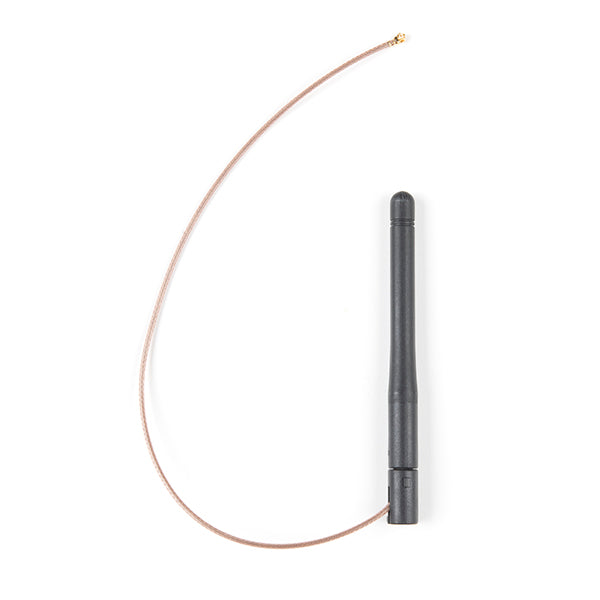

The GW.17 Click–in Terminal Antenna is a high performance robust 2.4GHz dipole antenna designed for quick assembly onto finished products. The specially designed click in plastic head greatly reduces the assembly time and cost compared with most terminal antennas with a connector. The product comes with 250mm low loss RG-178 cable and IPEX MHFI ® (U.FL) connector. Having the cable and IPEX connector coming out directly from the housing eliminates the need for a separate costly cable assembly and bulky mating connector on the device.

For example, a module manufacturer may state that the antenna must have less than 2dBi peak gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2dBi peak gain due to the effects of GND plane, surrounding components, and device housing.

Frequency: 2.4~2.5GHz
Peak Gain (straight): 2.7dBi
Peak Gain (bend): 1.6dBi
Average Gain (straight): -1.3dBi
Average Gain (bend): -1.3dBi
Efficiency (straight): 74%
Efficiency (bend): 74%
Polarization: Linear
Impedance: 50 Ohms
Radiation Pattern: Omni
Input Power: 2W max
Antenna Length: 112.6mm
Antenna Diameter: 9.3mm
Antenna Body Material: TPU
Temperature Range: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH

Datasheet
