DESCRIPTION

The 16-Channel 12-bit PWM/Servo HAT will drive up to 16 servos or PWM outputs over I2C with only 2 pins. The on-board PWM controller will drive all 16 channels simultaneously with no additional Raspberry Pi processing overhead. What’s more, you can stack up to 62 of them to control up to 992 servos – all with the same 2 pins!

The Raspberry Pi is a wonderful little computer, but one thing it isn’t very good at is controlling DC Servo Motors – these motors need very specific and repetitive timing pulses to set the position. Instead of asking the Pi Linux kernel to send these signals, pop on this handy HAT! It adds the capability to control 16 Servos with perfect timing. It can also do PWM up to 1.6 kHz with 12-bit precision, all completely free-running.

There is a Python library for use with this Raspberry Pi HAT (see resources), so you’ll be up and running instantly. The PWM/Servo HAT is the perfect solution for any project that requires a lot of servos or PWM outputs!

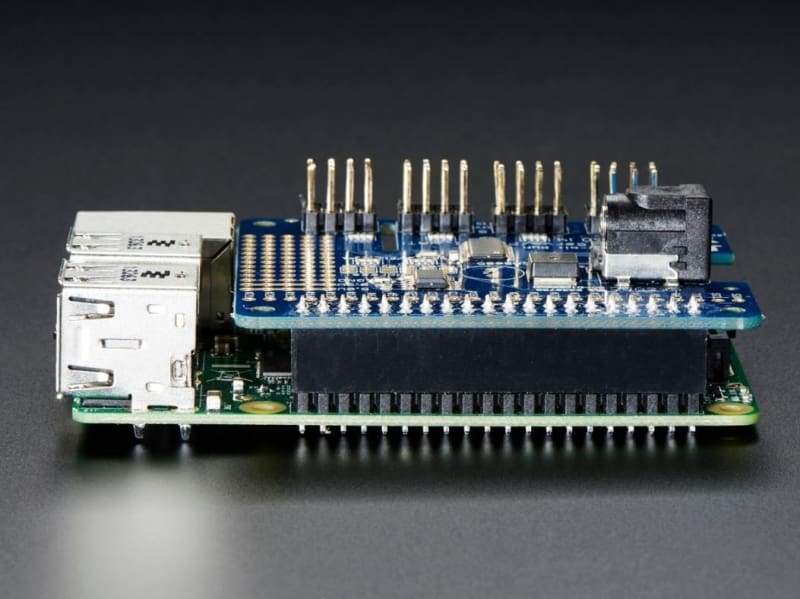

Each order comes with a Servo HAT, a 2-pin terminal block, four 3×4 headers and a 2×20 socket header. You’ll need to do some light through-hole soldering to attach the headers onto the HAT circuit board, but it’s easy to do with basic soldering tools like a soldering iron and rosin core electronics solder. If you would like to stack multiple HATs onto one Pi, you can also pick up a 2×20 stacking header and a set of right-angle 3×4 headers that should be soldered on instead.

Please Note:

• For use with Raspberry Pi Model A+, B+, or Pi 2 can be used with Model A or B if you use a tall 2×13 header instead of the included 2×20. Works with any servo that can be powered by 5V and take 3.3V logic level signals.
• This kit does not come with Raspberry Pi, servos, or the required 5V power supply.

FEATURES

Dimensions w/ components: 65mm x 56mm x 13mm / 2.6″ x 2.2″ x 0.5″

RESOURCES

• PCA9685 servo/pwm driver datasheet
• 16-Channel PWM/Servo HAT for Raspberry Pi product information
• Python Library
