10-pin 2×5 IDC Cable (ID: 1675) In China Cheap Online

DESCRIPTION

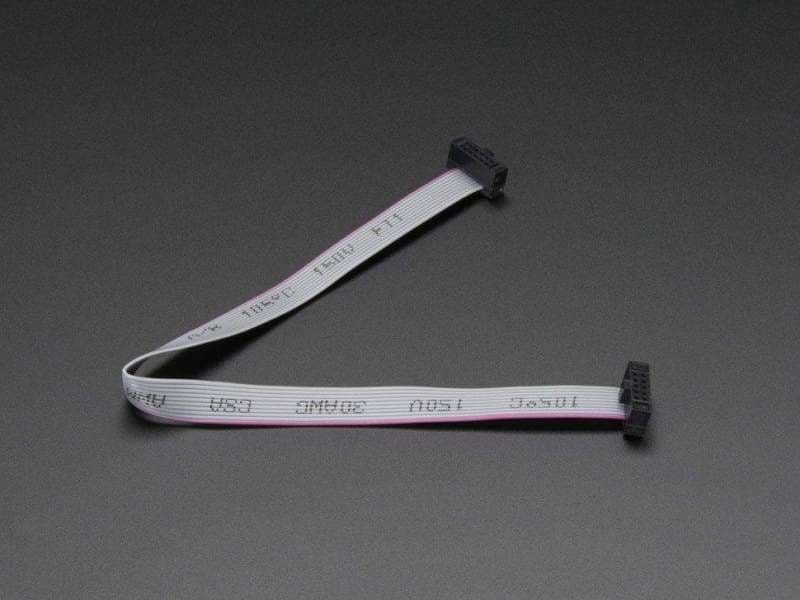

These 10-pin IDC cables are handy when programming or debugging a tiny board that uses 10-pin 1.27mm (0.05″) pitch SWD programming connectors. We see these connectors often on ARM Cortex dev kits and have a few handy in our ARM-dev box.

The ribbon cable is 0.06mm/0.025″ pitch and the connector is a 1.27mm (0.05″) pitch 2×5 box. These are not for use with programming most AVRs or other large devices that have 0.1″ pitch connectors so be aware of which you need!

FEATURES

• Socket to Socket cable
• Dimensions: 150mm long x 6mm wide / 5.9″ x .3″
• Sockets are 2×5 – 5mm x 3mm
• Sockets have a 1.27mm pitch
