1 LED 12mm Ring – WS2812B 5050 RGB LED with Integrated Drivers (Adafruit Neopixel compatible) Shop For Cheap Online

DESCRIPTION

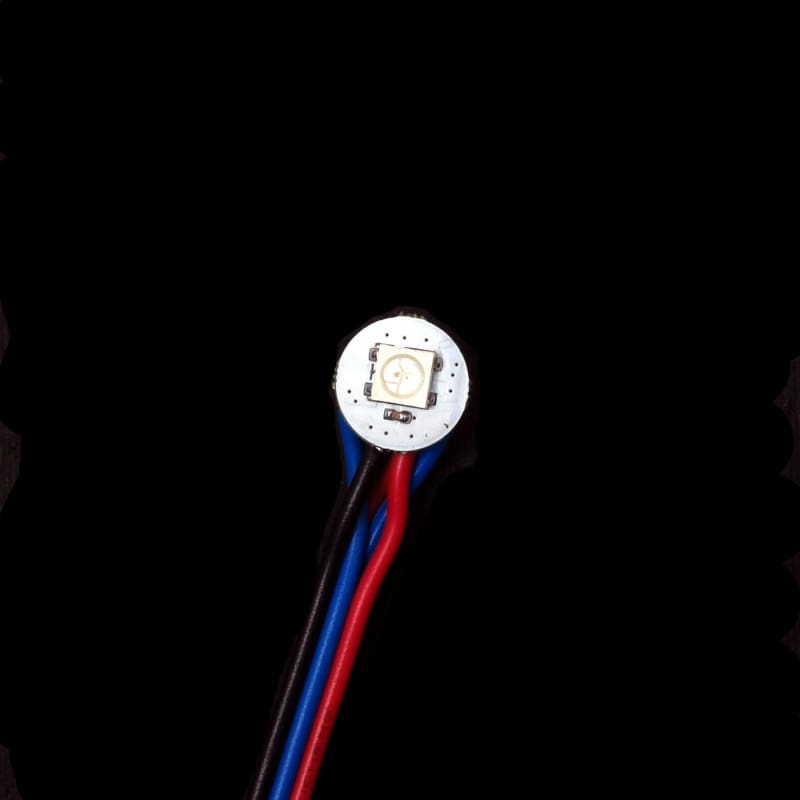

This is the smallest in our range of LED rings, this is a single WS2812 RGB pixel. We’ve worked with leading LED manufacturers to ensure these are of the highest quality and that they are fully compatible with the Adafuit NeoPixel library you know and love using! This ring has 4 pre-soldered connections so it’s easy to get set up and control in no time. With a V+, GND and DATA IN & OUT connection they’re driven from a single line making them perfect for use with controllers with limited output pins and daisy chaining together.

Please Note:

• The LED chips used in these rings can change from WS2812B to SK6812 depending on the batch but the performance is almost identical.
• If you’d like to check which version our current stock uses please contact us.

FEATURES

• Number of LEDs: 1
• Power: 0.18W
• Voltage: 5V
• Outer Diameter: 12mm
• LED: SMD 5050 RGB
• Operation Temperature: -20 C to 60 C
• Beam Angle: 140 degrees
• IC: WS2812
• Colour: RGB

Pinout:

• Blue: Data In (DI), Data Out (DO)
• Red: Positive Power (5V)
• Black: Ground

RESOURCES

• NeoPixel Ring Clock
• Pololu LED strip Arduino Library (WS2812B)
• Pololu LED strip mbed Library (WS2812B)
• Adafruit Neopixel Library
• Using NeoPixels with Netduino Plus 2
• Adafruit NeoPixel Uberguide
